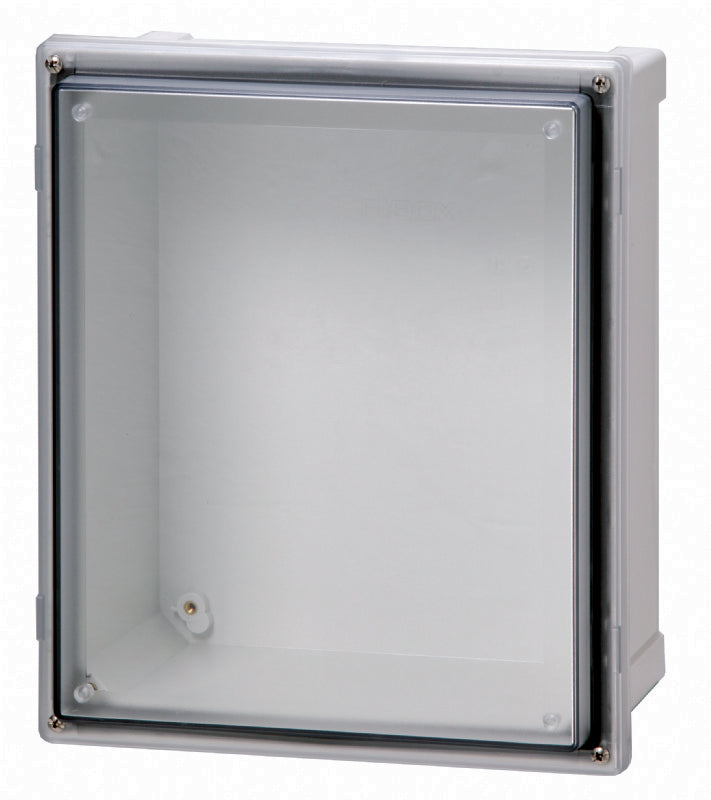

AR664SCT 6 x 6 x 4 Inch PC Enclosure, Transparent screw cover

AR664SCT 6 x 6 x 4 Inch PC Enclosure, Transparent screw cover

SKU: AR664SCT Download PDF

Now $12,369.00
BEFORE   Now $12,369.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 6 x 6 x 4 Inch PC enclosure featuring a transparent screw cover It includes a screw cover, a base with 10-32 brass inserts, formed in place PUR gasket, and 4 stainless cover screws The package includes an enclosure mounting foot kit and accessory 10-32 screws for panel mounting This enclosure is designed to meet UL Type NEMA 4, 4X, 6, 6P, 12, 12K, and 13 ratings, with an ingress protection rating of IP66 and IP67, and an impact resistance of IK09.

Features and Benefits:

    •Made from durable polycarbonate material.

    •Transparent cover for easy visibility of contents.

    •UL/cUL 4, 4X, 6, 6P, 12, 12K, and 13 rating, compatible with various environments.

    •Ingress protection ratings IP66 and IP67 for dust and water resistance.

    •Impact resistance rating of IK09 for enhanced durability.

    •Fully insulated electrical insulation for safety.

    •Halogen-free material for reduced environmental impact.

    •UV resistance ensures longevity under sunlight exposure.

    •Flammability ratings meet safety standards.

Specifications:

 Dimensions (Height x Width x Depth in inches) 6 x 6 x 4
 Dimensions (Height x Width x Depth in mm) 152.4 x 152.4 x 101.6
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature (continuous) °F -40 to 175
 Temperature (continuous) °C -40 to 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
