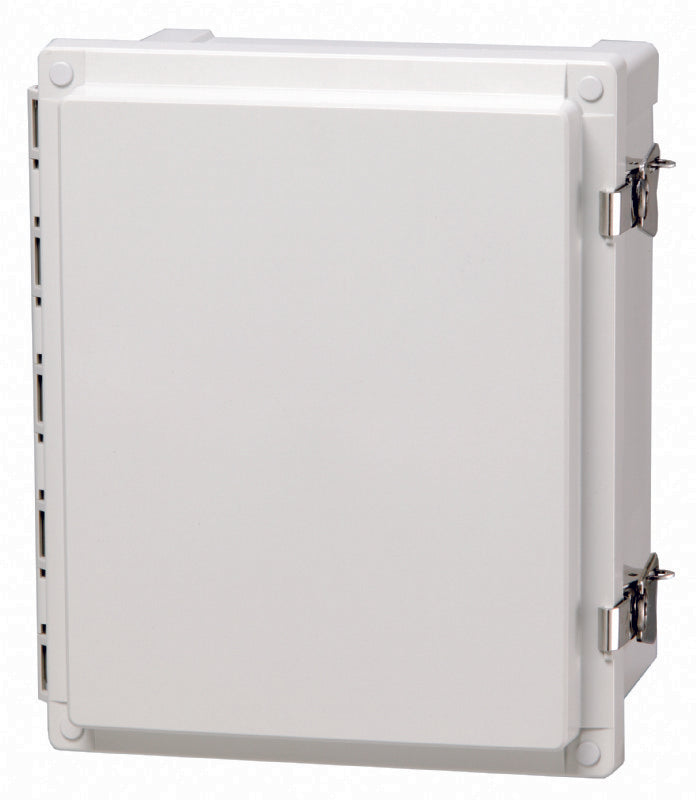

AR24208CHSSL 24 x 20 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

AR24208CHSSL 24 x 20 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

SKU: AR24208CHSSL Download PDF

Now $73,651.00
BEFORE   Now $73,651.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The product is a 24 x 20 x 8 Inch PC enclosure featuring a hinged opaque screw cover secured with a stainless steel lockable latch It is designed for robust applications and meets several industrial standards The enclosure comes ready with a quick-release latch, and is manufactured from durable polycarbonate material, making it suitable for various demanding environments.

Features and Benefits:

    •Hinged cover for easy access.

    •Base equipped with 10-32 brass inserts.

    •IP66 and IP67 rated for ingress protection.

    •IK09 rated for impact resistance.

    •Lockable latch for enhanced security.

    •Compliant with UL/cUL 4, 4X, 12, 12K and 13 standards.

    •Fully insulated and halogen-free.

Specifications:

 Dimensions: 24 x 20 x 8 inches
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: RAL 7035 - light grey
 Gasket material: Polyurethane
 Temperature (continuous): -40 … 80 °C
 UL/cUL Type: UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection: IP66; IP67
 Impact Resistance: IK09
 Electrical insulation: Fully insulated
 Halogen free: Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test: 960 °C
