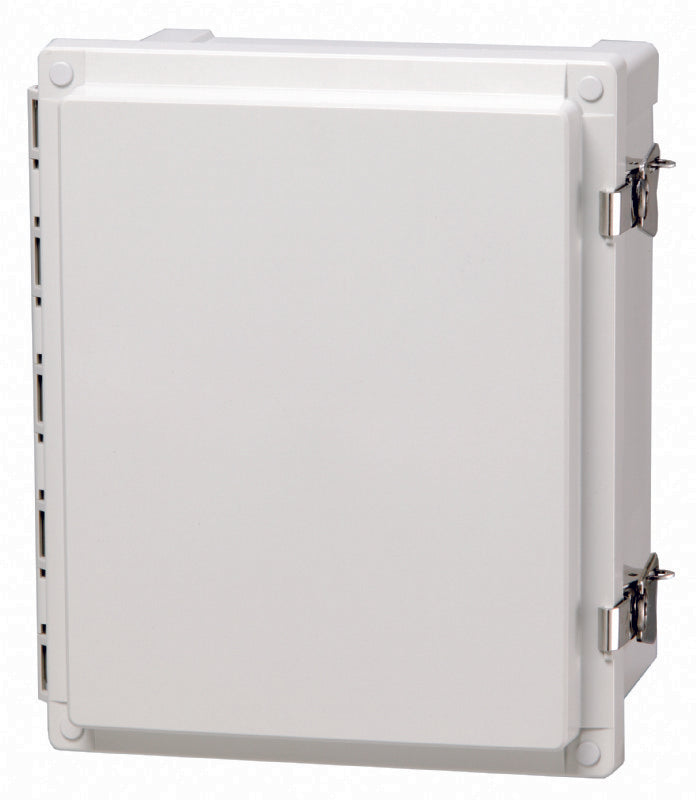

AR20168CHTSS 20 x 16 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

AR20168CHTSS 20 x 16 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

SKU: AR20168CHTSS   Download PDF

Qty:
Now $55,552.00   Web pricing policy
BEFORE   Now $55,552.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

20 x 16 x 8 Inch PC Enclosure, Hinged opaque screw cover w/SS Lockable twist latch.

Features and Benefits:

    •UL Type NEMA 4, 4X,12, 12K and 13.

    •IP66; IP67.

    •IK09.

    •Hinged cover.

    •Base with 10-32 brass inserts.

    •Latched cover with formed in place PUR gasket.

    •Stainless hinge pin.

    •Quick release latches.

    •Enclosure mounting foot kit.

    •Accessory 10-32 screws for panel mounting.

Specifications:

 Dimensions: Height (inch): 20, Width (inch): 16, Depth (inch): 8; Height (mm): 508, Width (mm): 406.4, Depth (mm): 203.2
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X,12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical insulation: Fully insulated
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
