Home / AR181610CHLT 18 x 16 x 10 Inch PC Enclosure, Hinged Transparent screw cover w/Plastic quick release latch
1 1

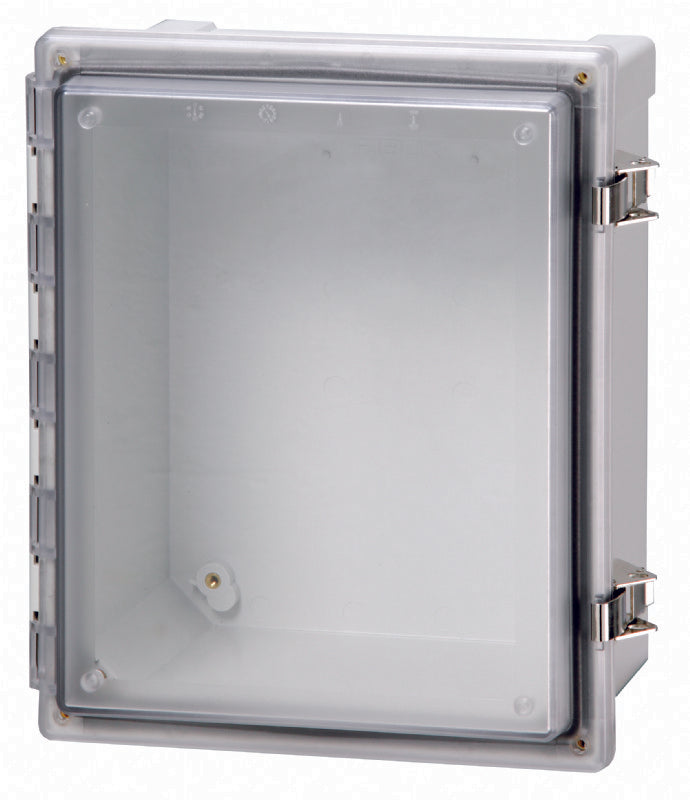

AR181610CHLT 18 x 16 x 10 Inch PC Enclosure, Hinged Transparent screw cover w/Plastic quick release latch

AR181610CHLT 18 x 16 x 10 Inch PC Enclosure, Hinged Transparent screw cover w/Plastic quick release latch

SKU: AR181610CHLT Download PDF

Now $38,733.00
BEFORE   Now $38,733.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 18 x 16 x 10 Inch PC Enclosure features a hinged transparent screw cover with a plastic quick release latch It is constructed from durable polycarbonate, ensuring robust protection for electrical components The enclosure is suitable for various environments, offering high ingress protection ratings of IP66 and IP67, as well as impact resistance rated at IK09 This enclosure includes a base with 10-32 brass inserts, a latched cover with a formed in place PUR gasket, and a stainless hinge pin, making it both functional and easy to use for electrical installations.

Features and Benefits:

    •UL Type NEMA 4, 4X, 12, 12K and 13 compliant.

    •High ingress protection ratings of IP66 and IP67.

    •Impact resistance rated at IK09.

    •Made of durable polycarbonate for robust construction.

    •Includes quick release latches for easy access.

    •Hinged cover with a transparent finish for visibility.

    •Temperature range of -40 to 175 °F (-40 to 80 °C).

    •Gasket made from polyurethane for effective sealing.

    •Electrical housing for sensitive components in various industrial environments.

    •Outdoor applications requiring superior weather resistance.

Specifications:

 Dimensions Height (inch): 18
 Dimensions Width (inch): 16
 Dimensions Depth (inch): 10
 Dimensions Height (mm): 457.2
 Dimensions Width (mm): 406.4
 Dimensions Depth (mm): 254
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature (continuous) °F: -40 … 175
 Temperature (continuous) °C: -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical insulation: Fully insulated
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695): 960 °C
