Home / AR16148CHTSS 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch
1 1

AR16148CHTSS 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

AR16148CHTSS 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

SKU: AR16148CHTSS Download PDF

Now $26,106.00
BEFORE   Now $26,106.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

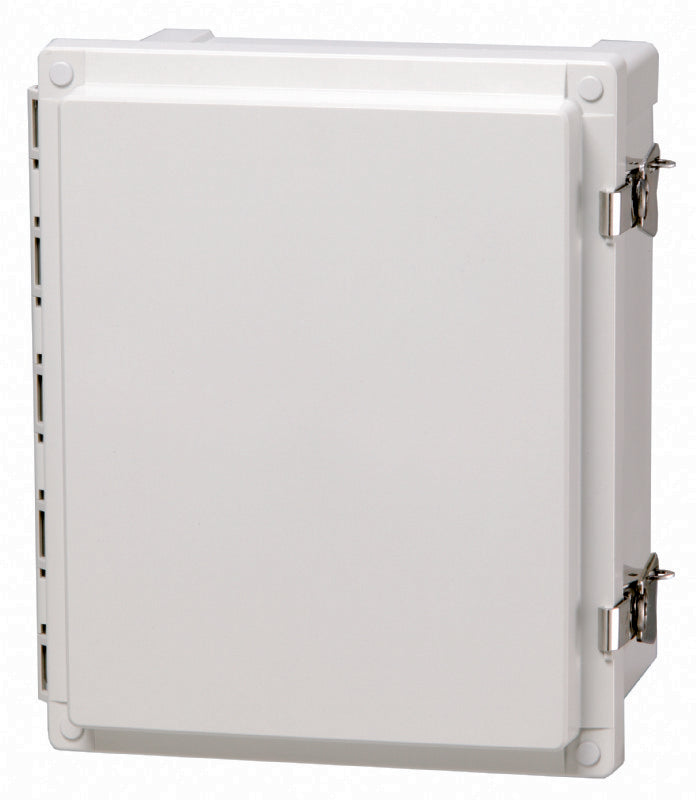

16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/SS Lockable twist latch This enclosure includes a hinged cover, a base with 10-32 brass inserts, a latched cover with formed in place PUR gasket, and a stainless hinge pin It features quick release latches and comes with an enclosure mounting foot kit as well as accessory 10-32 screws for panel mounting.

Specifications:

 Dimensions (inch) 16 x 14 x 8
 Dimensions (mm) 406.4 x 355.6 x 203.2
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X,12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
