Home / AR16148CHSSL 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch
1 1

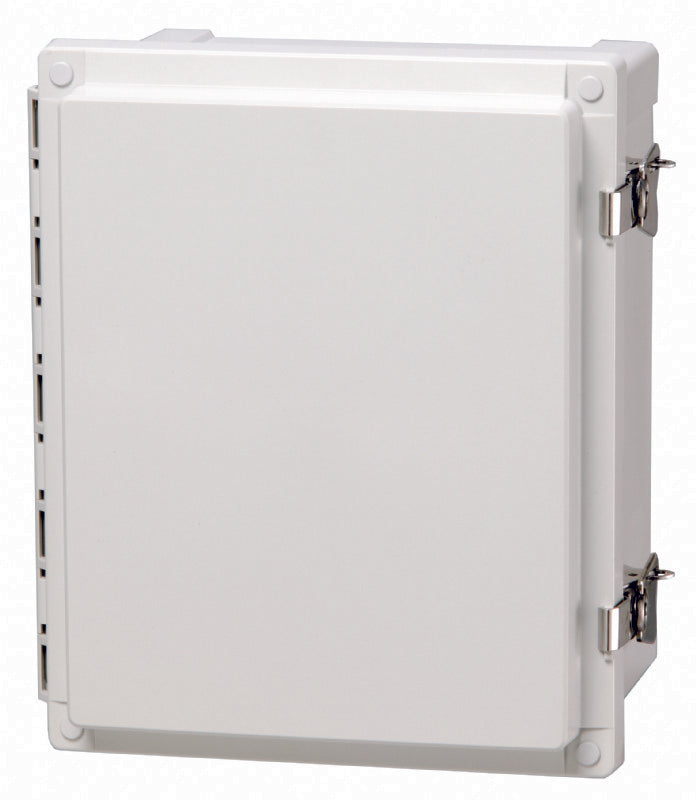

AR16148CHSSL 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

AR16148CHSSL 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

SKU: AR16148CHSSL Download PDF

Now $25,652.00
BEFORE   Now $25,652.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/SS Lockable latch The enclosure features dimensions of 16 x 14 x 8 inches and comes with a hinged cover It has a base with 10-32 brass inserts, a latched cover with a formed in place PUR gasket, and a stainless hinge pin Quick release latches are included along with a mounting foot kit and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •Hinged cover for easy access.

    •Stainless steel lockable latch for security.

    •Base with 10-32 brass inserts for mounting.

    •Includes quick release latches for convenience.

    •Made from durable polycarbonate material.

    •UV resistant as per UL 508 standards.

    •Suitable for use in various industrial applications requiring protection from environmental factors.

    •Ideal for switchgear cabinets.

Specifications:

 Dimensions (inches) 16 x 14 x 8
 Dimensions (mm) 406.4 x 355.6 x 203.2
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature Range (°F) -40 to 175
 Temperature Range (°C) -40 to 80
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection (IP) IP66; IP67
 Impact Resistance (IK) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
