Home / AR16148CHSS 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Quick release latch
1 1

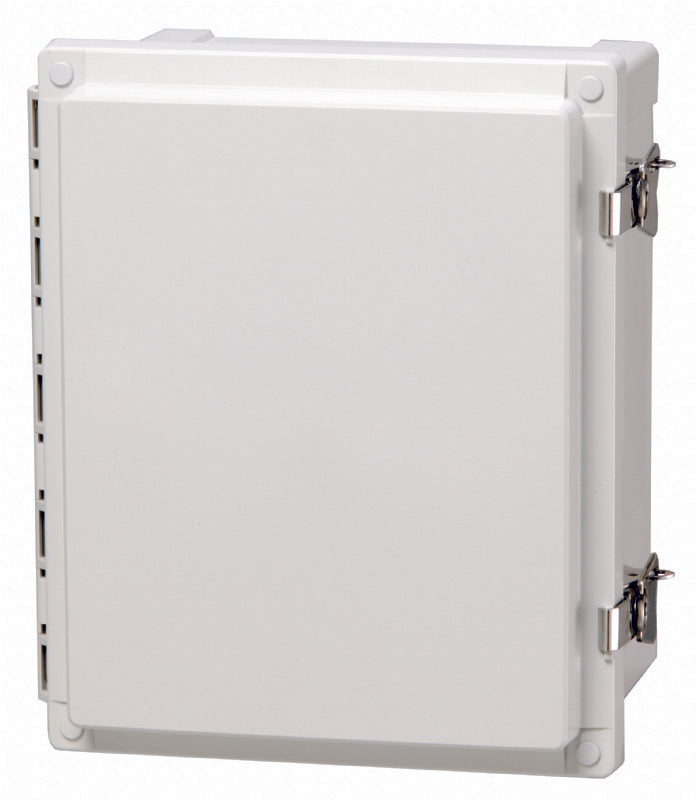

AR16148CHSS 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Quick release latch

AR16148CHSS 16 x 14 x 8 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Quick release latch

SKU: AR16148CHSS Download PDF

Now $25,483.00
BEFORE   Now $25,483.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 16 x 14 x 8 inch polycarbonate enclosure featuring a hinged opaque screw cover with stainless steel quick release latch It is designed to comply with multiple UL/cUL standards (Type NEMA 4, 4X, 12, 12K, and 13) and withstands environmental challenges with a high ingress protection rating of IP66 and IP67 It includes a base with 10-32 brass inserts and a latching cover equipped with a formed-in-place PUR gasket for enhanced sealing integrity.

The enclosure is suitable for various applications requiring protection from dust and water, confirming its robust construction with stainless steel components and polyurethane gasketing.

Features and Benefits:

    •Hinged cover design for easy access.

    •Stainless steel quick release latches enhance security.

    •Constructed from durable polycarbonate material.

    •Ingress protection ratings of IP66 and IP67 for superior environmental sealing.

    •Impact resistance rated IK09 to protect against physical impacts.

    •UV resistance ensures longevity in outdoor applications.

    •Fully insulated for safe electrical applications.

    •Halogen-free material contributes to a safer environment.

    •Suitable for a wide range of applications, complying with UL standards.

Specifications:

 Dimensions (inch): 16 x 14 x 8
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature Range (°F): -40 … 175
 Temperature Range (°C): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X,12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical insulation: Fully insulated
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
