AR16148CHSC 16 x 14 x 8 Inch PC Enclosure, Hinged Opaque Raised Screw cover

AR16148CHSC 16 x 14 x 8 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR16148CHSC Download PDF

Now $22,057.00
BEFORE   Now $22,057.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

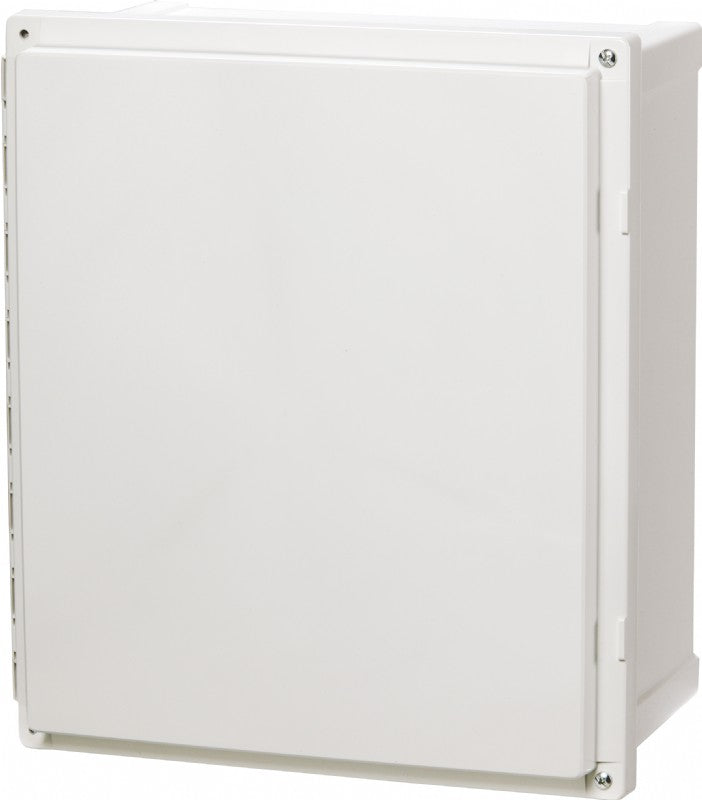

This is a 16 x 14 x 8 inch PC enclosure featuring a hinged opaque raised screw cover It is made from polycarbonate material and has a base color and cover color of RAL 7035 light grey The enclosure includes a hinged screw cover, a base with 10-32 brass inserts, a cover with a formed in place PUR gasket, a stainless hinge pin, and two cover screws It comes with an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

Specifications:

 Dimensions (Height x Width x Depth in inches) 16 x 14 x 8
 Dimensions (Height x Width x Depth in mm) 406.4 x 355.6 x 203.2
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F) -40 to 175
 Temperature (°C) -40 to 80
 UL/cUL Type UL/cUL 4, 4X,12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
