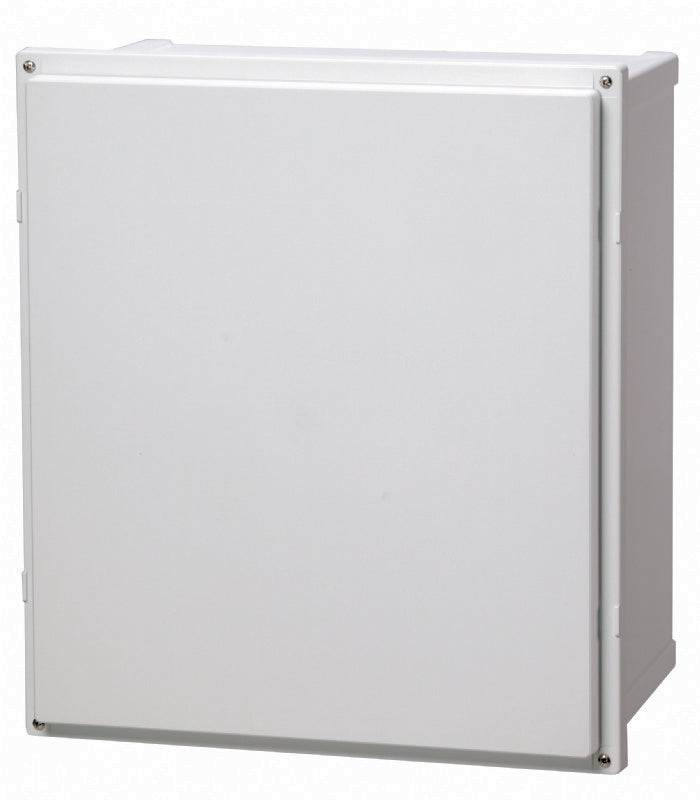

AR14127SC 14 x 12 x 7 Inch PC Enclosure Raised Opaque Screw Cover

AR14127SC 14 x 12 x 7 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR14127SC Download PDF

Now $18,079.00
BEFORE   Now $18,079.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 14 x 12 x 7 Inch PC Enclosure is designed with a raised opaque screw cover, providing robust protection for internal components This enclosure is made from polycarbonate, offering excellent durability and weather resistance It features a screw cover with an integrated polyurethane gasket, ensuring a tight seal against environmental elements The enclosure is rated for use in harsh conditions, adhering to UL Type NEMA 4, 4X, 12, 12K, and 13 specifications and delivering IP66 and IP67 ingress protection.

It is ideal for various applications, providing reliable electrical insulation and impact resistance (IK09) The design includes brass inserts for secure mounting and comes with necessary screws for panel installation.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •IP66 and IP67 ratings for superior water and dust protection.

    •Raised opaque screw cover with integrated PUR gasket for secure sealing.

    •Impact resistance rated IK09 for added durability.

    •UL/cUL Type 4, 4X, 12, 12K, and 13 compliant.

    •Halogen-free and UV resistant for safety and longevity.

Specifications:

 Dimensions (inches) 14 x 12 x 7
 Dimensions (mm) 355.6 x 304.8 x 177.8
 Material Polycarbonate
 Base Color RAL 7035 - light grey
 Cover Color RAL 7035 - light grey
 Gasket Material Polyurethane
 Temperature (°F) -40 to 175
 Temperature (°C) -40 to 80
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical Insulation Fully insulated
 Halogen Free Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
