Home / AR14127CHSC 14 x 12 x 7 Inch PC Enclosure, Hinged Opaque Raised Screw cover
1 1

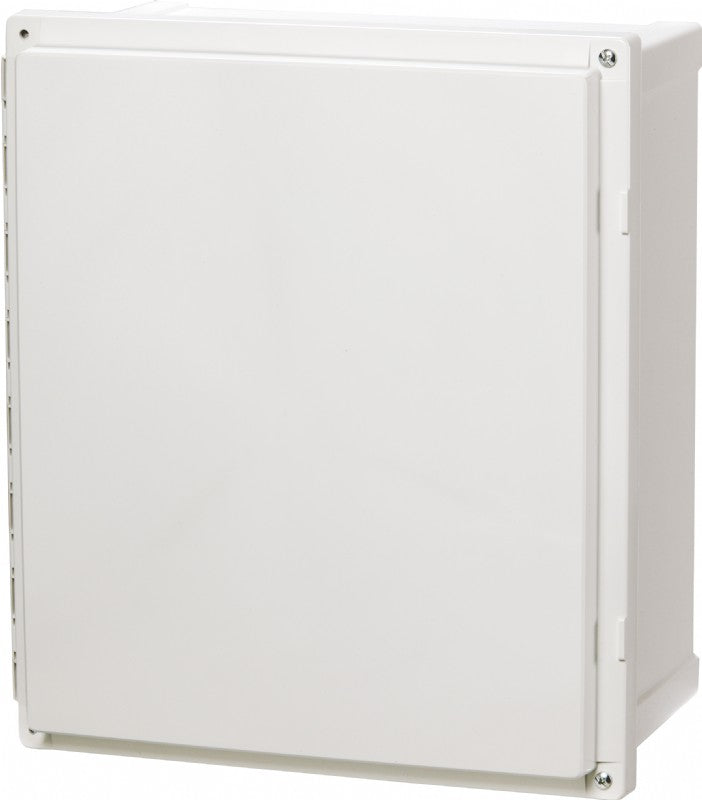

AR14127CHSC 14 x 12 x 7 Inch PC Enclosure, Hinged Opaque Raised Screw cover

AR14127CHSC 14 x 12 x 7 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR14127CHSC Download PDF

Now $19,198.00
BEFORE   Now $19,198.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

14 x 12 x 7 Inch PC Enclosure, Hinged Opaque Raised Screw cover Hinged screw cover Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin and 2 cover screws Enclosure mounting foot kit Accessory 10-32 screws for panel mounting.

Features and Benefits:

    •UL Type NEMA 4, 4X, 12, 12K, and 13.

    •IP66; IP67; IK09.

    •Fully insulated.

    •Halogen free.

    •UV resistance.

    •Flammability Rating: UL94-5VA (f1).

    •Glow Wire Test (IEC 60695): 960 °C.

Specifications:

 Dimensions (inch) 14 x 12 x 7
 Dimensions (mm) 355.6 x 304.8 x 177.8
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
