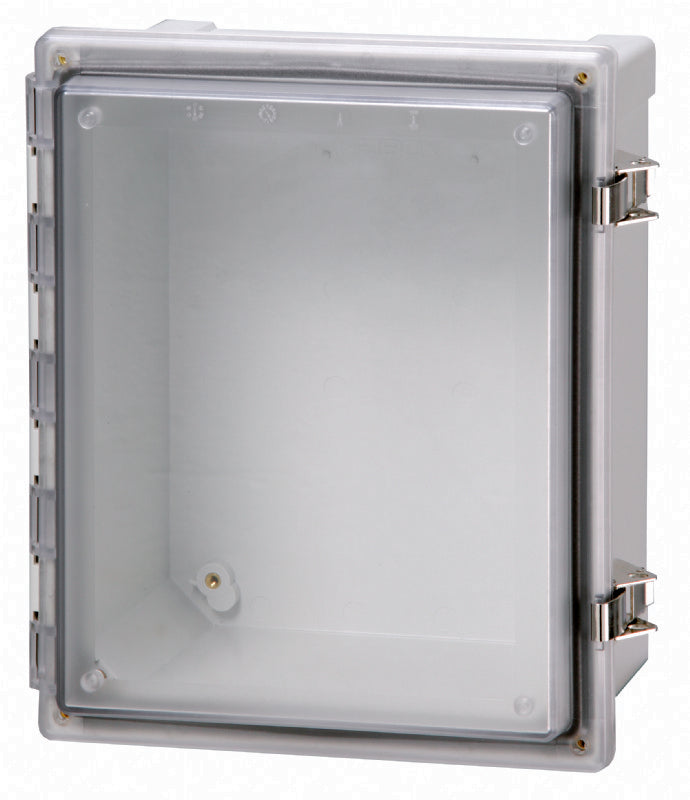

AR14127CHLT 14 x 12 x 7 Inch PC Enclosure, Hinged Transparent screw cover w/Plastic quick release latch

AR14127CHLT 14 x 12 x 7 Inch PC Enclosure, Hinged Transparent screw cover w/Plastic quick release latch

SKU: AR14127CHLT Download PDF

Now $26,594.00
BEFORE   Now $26,594.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This 14 x 12 x 7 Inch PC Enclosure features a Hinged Transparent screw cover with a Plastic quick release latch It is designed with a base that includes 10-32 brass inserts and a latched cover with a formed in place PUR gasket The enclosure has a stainless hinge pin and quick release latches, along with an enclosure mounting foot kit and accessory 10-32 screws for panel mounting It meets UL Type NEMA 4, 4X, 12, 12K, and 13 standards, and has an ingress protection rating of IP66 and IP67, with IK09 impact resistance.

Features and Benefits:

    •Hinged cover for easy access.

    •Transparent screw cover for visibility.

    •Includes plastic quick release latch.

    •Constructed with durable polycarbonate material.

    •Meets UL Type ratings for safety and compliance.

    •Ingress protection IP66 and IP67 for harsh environments.

    •Impact resistance rated IK09.

    •Fully insulated for electrical safety.

    •Halogen-free construction for safety.

    •UV resistant according to UL 508 standards.

    •High flammability rating for fire safety.

    •Glow wire test compliant up to 960 °C.

Specifications:

 Dimensions (Height x Width x Depth): 14 x 12 x 7 inches (355.6 x 304.8 x 177.8 mm)
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature (continuous): -40 to 175 °F (-40 to 80 °C)
 UL/cUL Type: UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical insulation: Fully insulated
 Halogen free: Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695): 960 °C
