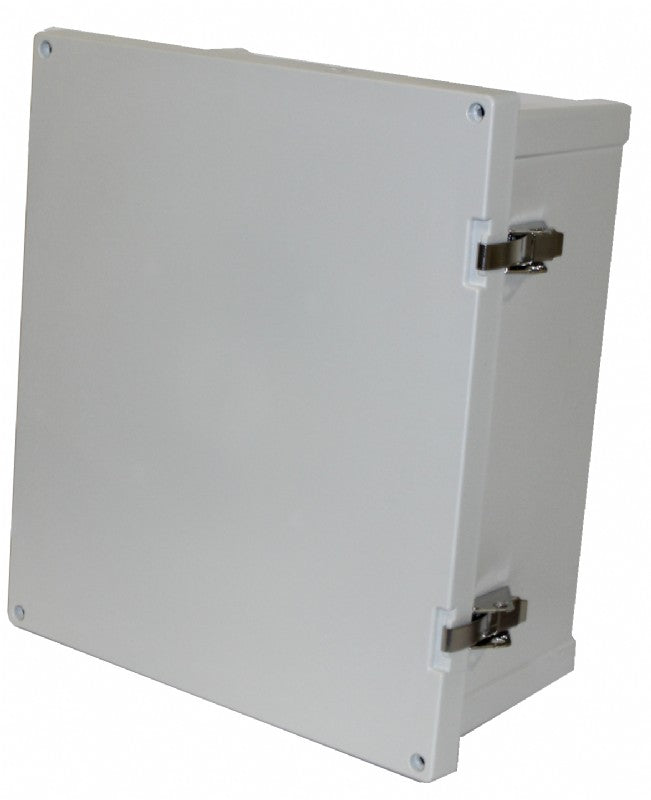

Home / AR14126CHFSSL 14 x 12 x 6 Inch PC Enclosure, Hinged Latched Opaque Flat Cover
1 1

AR14126CHFSSL 14 x 12 x 6 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

AR14126CHFSSL 14 x 12 x 6 Inch PC Enclosure, Hinged Latched Opaque Flat Cover

SKU: AR14126CHFSSL Download PDF

Now $23,465.00
BEFORE   Now $23,465.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The product is a 14 x 12 x 6 Inch PC enclosure featuring a hinged latched opaque flat cover It includes a hinged cover, base with 10-32 brass inserts, a latched flat cover equipped with a formed in place PUR gasket, and a stainless hinge pin The enclosure is designed with quick release latches and comes with an enclosure mounting foot kit along with accessory 10-32 screws for panel mounting.

Features and Benefits:

    •UL Type NEMA 4, 4X, 12, 12K and 13 rated.

    •IP66 and IP67 ingress protection.

    •IK09 impact resistance.

    •Fully insulated electrical insulation.

    •Halogen free and UV resistant.

    •High flammability rating (UL94-5VA).

    •Glow wire test resistance up to 960 °C.

Specifications:

 Dimensions (inches) 14 x 12 x 6
 Dimensions (mm) 355.6 x 304.8 x 152.4
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature range (°F) -40 … 175
 Temperature range (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection IP66, IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
