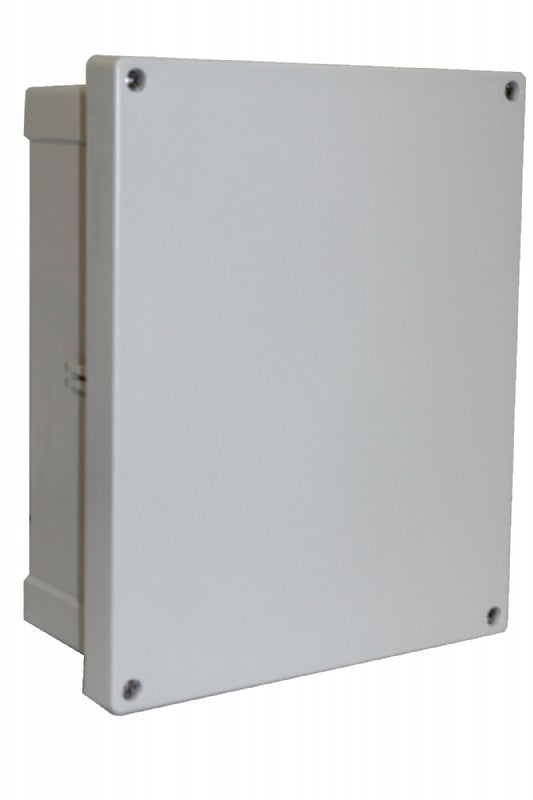

AR14126CHFSC 14 x 12 x 6 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

AR14126CHFSC 14 x 12 x 6 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

SKU: AR14126CHFSC Download PDF

Now $19,198.00
BEFORE   Now $19,198.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 14 x 12 x 6 Inch PC Enclosure is designed with a hinged opaque flat screw cover It is made from durable polycarbonate material and features a base and cover color of light grey (RAL 7035) This enclosure includes a hinged screw flat cover, a base with 10-32 brass inserts, a formed in place PUR gasket, a stainless hinge pin, and 2 cover screws It also comes with an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

The enclosure is suitable for various applications requiring protective casing.

Features and Benefits:

    •Hinged screw flat cover for easy access.

    •Constructed from robust polycarbonate material.

    •Ingress Protection rating of IP66 and IP67 for protection against water and dust.

    •Impact resistance rating of IK09.

    •Compliant with UL/cUL standards.

Specifications:

 Dimensions (Height x Width x Depth) 14 x 12 x 6 inches
 Material Polycarbonate
 Base Color RAL 7035 - light grey
 Cover Color RAL 7035 - light grey
 Gasket Material Polyurethane
 Temperature (Continuous) -40 … 175 °F, -40 … 80 °C
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical Insulation Fully insulated
 Halogen Free Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
