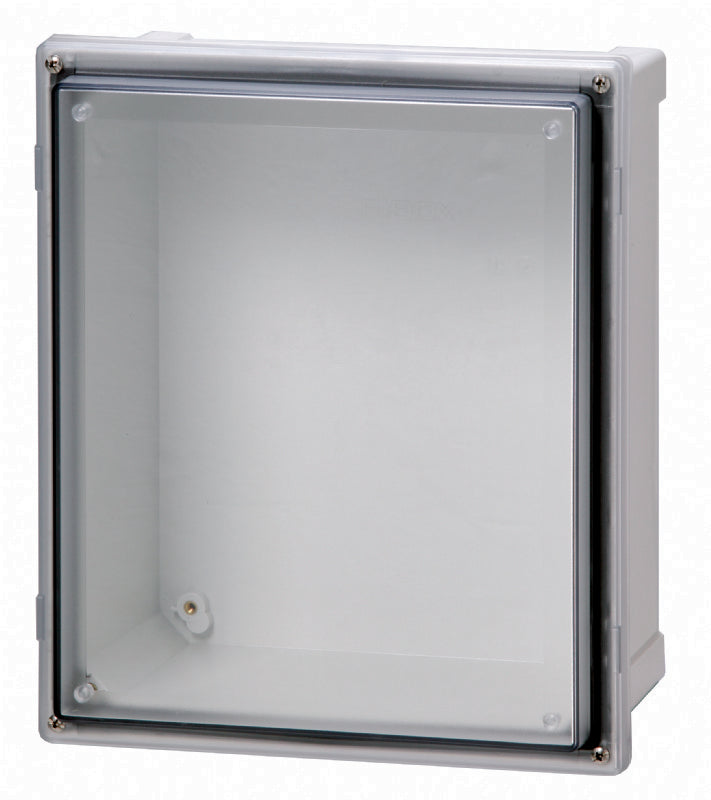

AR12106CHSCT 12 x 10 x 6 Inch PC Enclosure, Hinged Transparent Screw Cover

AR12106CHSCT 12 x 10 x 6 Inch PC Enclosure, Hinged Transparent Screw Cover

SKU: AR12106CHSCT Download PDF

Now $19,878.00
BEFORE   Now $19,878.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

12 x 10 x 6 Inch PC Enclosure, Hinged Transparent Screw Cover This PC enclosure features a hinged screw cover and is made from durable polycarbonate material It includes a base with 10-32 brass inserts and a formed in place polyurethane gasket, along with a stainless hinge pin and two cover screws The enclosure comes with a mounting foot kit and accessory screws for panel mounting.

Features and Benefits:

    •Hinged transparent screw cover for easy access.

    •Durable polycarbonate material ensures longevity.

    •Includes mounting foot kit and accessory screws for convenience.

    •Wide temperature range from -40 °F to 175 °F.

    •High ingress protection ratings (IP66, IP67).

Specifications:

 Dimensions (inch) 12 x 10 x 6
 Height (mm) 304.8
 Width (mm) 254
 Depth (mm) 152.4
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
