AR12105FSC 12 x 10 x 5 Inch PC Enclosure, Flat Opaque Screw Cover

AR12105FSC 12 x 10 x 5 Inch PC Enclosure, Flat Opaque Screw Cover

SKU: AR12105FSC Download PDF

Now $15,425.00
BEFORE   Now $15,425.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

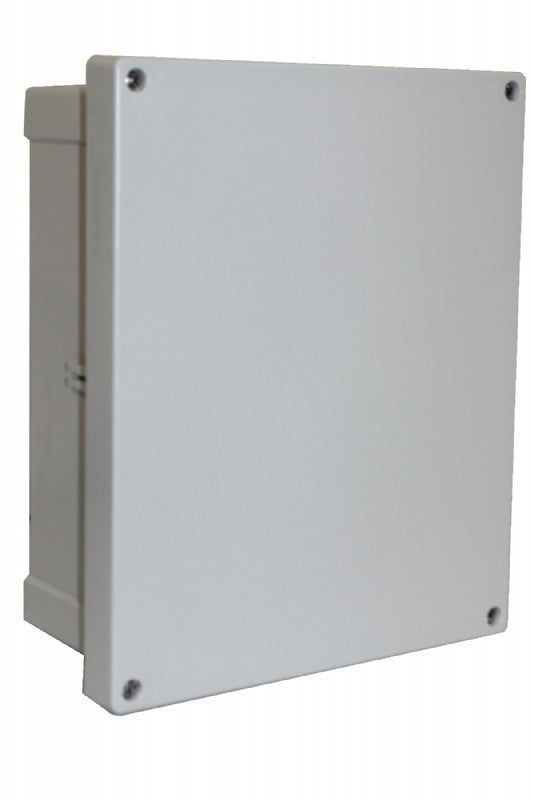

This product is a 12 x 10 x 5 Inch polycarbonate enclosure featuring a flat opaque screw cover It is suitable for various installation types as it is compliant with UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 ratings The enclosure includes a base with 10-32 brass inserts, a formed in place PUR gasket, and 4 stainless cover screws, ensuring reliability and durability in various environmental conditions.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Base and cover color RAL 7035 - light grey.

    •IP66 and IP67 rated for superior protection against dust and water.

    •Impact resistance IK09 rating for added strength.

    •Fully insulated for electrical safety.

    •UV resistant as per UL 508 standards.

    •Halogen free for environmentally friendly applications.

    •High flammability rating UL94-5VA (f1).

Specifications:

 Dimensions (inches) Height 12, Width 10, Depth 5
 Dimensions (mm) Height 304.8, Width 254, Depth 127
 Temperature (continuous °F) -40 … 175
 Temperature (continuous °C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
