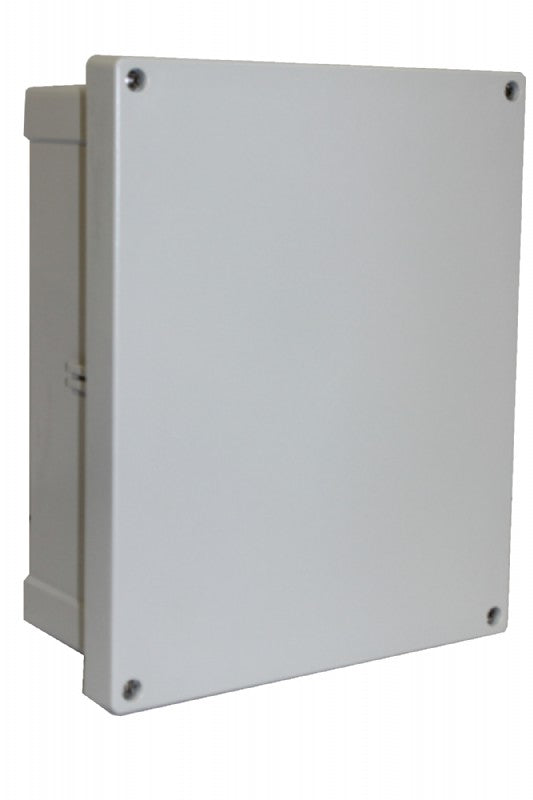

AR12105CHFSC 12 x 10 x 5 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

AR12105CHFSC 12 x 10 x 5 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

SKU: AR12105CHFSC Download PDF

Now $16,566.00
BEFORE   Now $16,566.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 12 x 10 x 5 Inch PC Enclosure featuring a Hinged Opaque Flat Screw Cover It is specifically designed to provide protection in various environments and meets stringent UL/cUL Type requirements including Type 4, 4X, 6, 6P, 12, 12K, and 13 ratings The enclosure is constructed from durable polycarbonate material with a flat screw cover that is easy to use This product is suitable for a variety of applications, emphasizing reliability and safety in electrical installations.

Features and Benefits:

    •Hinged screw flat cover for easy access.

    •Base with 10-32 brass inserts for secure mounting.

    •Formed in place PUR gasket ensures protection against moisture.

    •Stainless hinge pin and two cover screws enhance durability.

    •Meets UL/cUL standards for electrical safety.

    •Ingress protection rated IP66 and IP67 for dust and water resistance.

Specifications:

 Dimensions (inches) 12 x 10 x 5
 Dimensions (mm) 304.8 x 254 x 127
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
