Home / AR1086SCT PC Enclosure - 10 x 8 x 6 Inch, Transparent screw cover
1 1

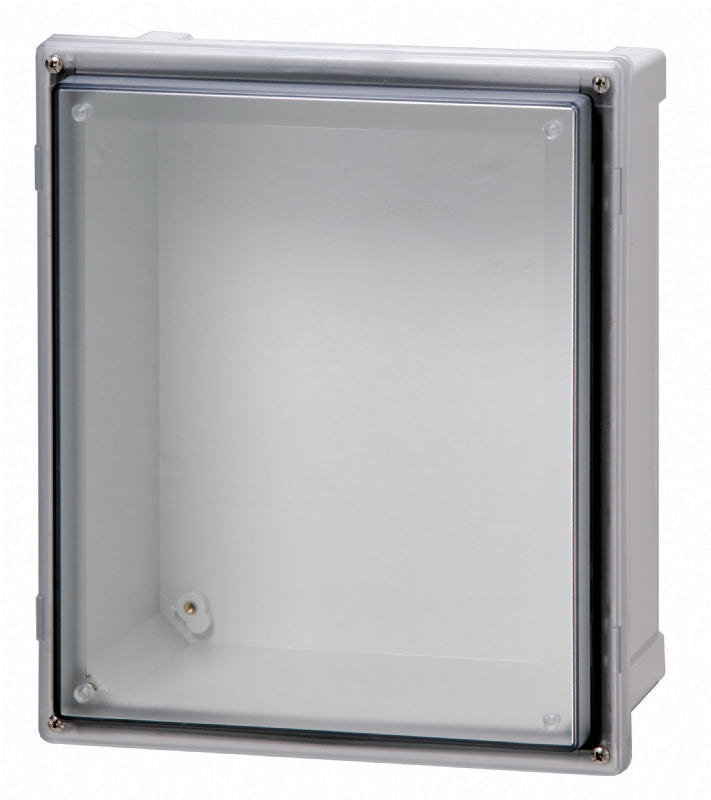

AR1086SCT PC Enclosure - 10 x 8 x 6 Inch, Transparent screw cover

AR1086SCT PC Enclosure - 10 x 8 x 6 Inch, Transparent screw cover

SKU: AR1086SCT Download PDF

Now $13,816.00
BEFORE   Now $13,816.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 10 x 8 x 6 Inch PC Enclosure with a transparent screw cover It is designed to meet various UL Type ratings including NEMA 4, 4X, 6, 6P, 12, 12K and 13, ensuring protection in diverse environments The enclosure is made of polycarbonate material and features a base with 10-32 brass inserts, along with a formed in place PUR gasket and 4 stainless cover screws The enclosure also includes a mounting foot kit and accessory screws for panel mounting.

Features and Benefits:

    •UL/cUL Type ratings including NEMA 4, 4X, 6, 6P, 12, 12K and 13.

    •IP66 and IP67 ingress protection rating.

    •IK09 impact resistance.

    •Made of durable polycarbonate material.

    •Transparent cover for visibility.

    •Fully insulated electrical insulation.

    •Halogen free and UV resistant.

    •Flammability rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1).

Specifications:

 Dimensions (inches) 10 x 8 x 6
 Height (mm) 254
 Width (mm) 203.2
 Depth (mm) 152.4
 Temperature (°F continuous) -40 … 175
 Temperature (°C continuous) -40 … 80
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent
 Gasket material Polyurethane
 Impact Resistance (EN 62262) IK09
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
