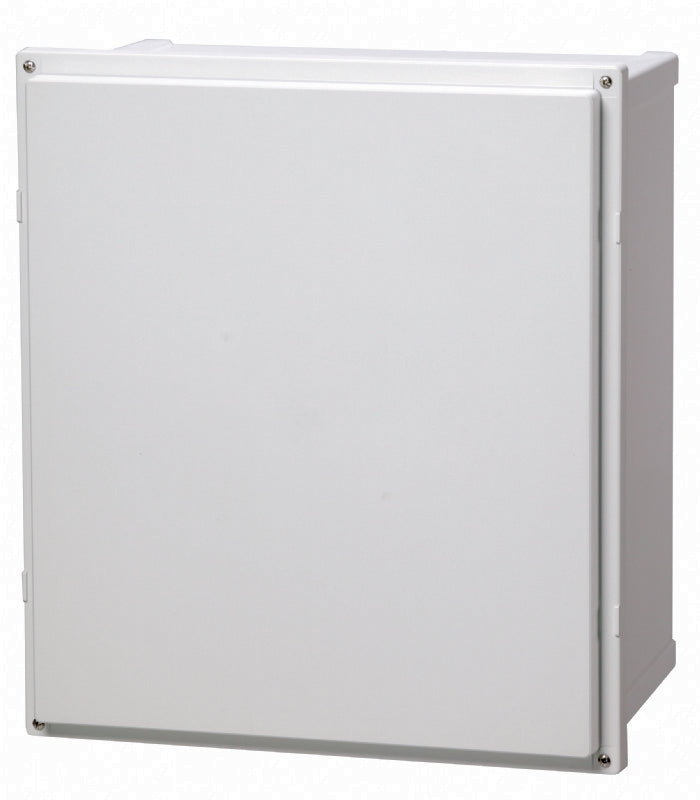

AR1086SC 10 x 8 x 6 Inch PC Enclosure Raised Opaque Screw Cover

AR1086SC 10 x 8 x 6 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR1086SC Download PDF

Now $11,513.00
BEFORE   Now $11,513.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The product is a 10 x 8 x 6 Inch PC Enclosure raised opaque screw cover made of polycarbonate It provides IP66 and IP67 ingress protection and is rated for UL/cUL types 4, 4X, 6, 6P, 12, 12K, and 13 The enclosure features a screw cover with a formed-in-place PUR gasket and is equipped with a mounting foot kit and accessory screws for panel mounting It is impact resistant to IK09 and offers UV resistance as per UL 508.

The material composition includes a halogen-free construction and has a flammability rating of UL94-5VA.

Features and Benefits:

    •Constructed of polycarbonate material for durability.

    •Provides IP66 and IP67 ingress protection for harsh environments.

    •Impact resistant to IK09 for added protection.

    •UL/cUL rated for multiple classifications (4, 4X, 6, 6P, 12, 12K, and 13).

    •Includes formed-in-place PUR gasket for enhanced sealing.

    •Halogen-free construction for safety in applications.

Specifications:

 Dimensions (Height x Width x Depth): 10 x 8 x 6 inches
 Material: Polycarbonate
 Base Color: RAL 7035 - light grey
 Cover Color: RAL 7035 - light grey
 Gasket Material: Polyurethane
 Temperature (Continuous): -40 … 175 °F / -40 … 80 °C
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
