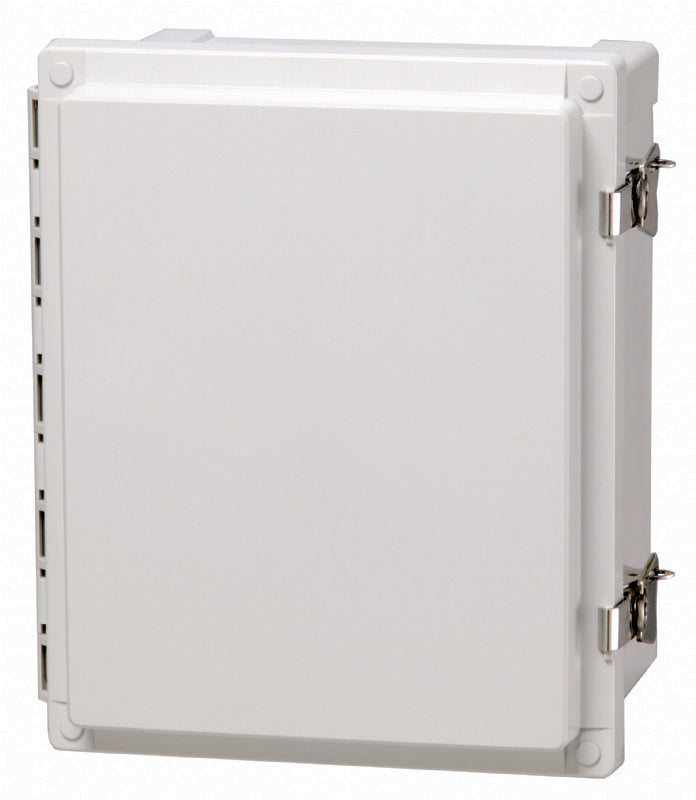

AR1086CHTSS 10 x 8 x 6 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

AR1086CHTSS 10 x 8 x 6 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable twist latch

SKU: AR1086CHTSS Download PDF

Now $16,897.00
BEFORE   Now $16,897.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 10 x 8 x 6 inch polycarbonate enclosure designed with a hinged opaque screw cover that features a stainless steel lockable twist latch The enclosure is suitable for various applications and adheres to several UL type ratings It includes a hinged cover, a base with 10-32 brass inserts, a latched cover with formed in place PUR gasket, and a stainless hinge pin The enclosure also comes with quick release latches and a mounting foot kit.

Accessory screws for panel mounting are included as well.

Features and Benefits:

    •Hinged opaque screw cover for easy access.

    •Stainless steel lockable twist latch for added security.

    •IP66 and IP67 rated for excellent ingress protection.

    •Impact resistance rating of IK09.

    •Constructed from durable polycarbonate material.

    •Includes quick release latches and mounting accessories.

Specifications:

 Height (inch) 10
 Width (inch) 8
 Depth (inch) 6
 Height (mm) 254
 Width (mm) 203.2
 Depth (mm) 152.4
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
