AR1086CHSST 10 x 8 x 6 Inch PC Enclosure, Hinged Transparent screw cover w/S.S. Quick release latch

AR1086CHSST 10 x 8 x 6 Inch PC Enclosure, Hinged Transparent screw cover w/S.S. Quick release latch

SKU: AR1086CHSST Download PDF

Now $19,110.00
BEFORE   Now $19,110.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

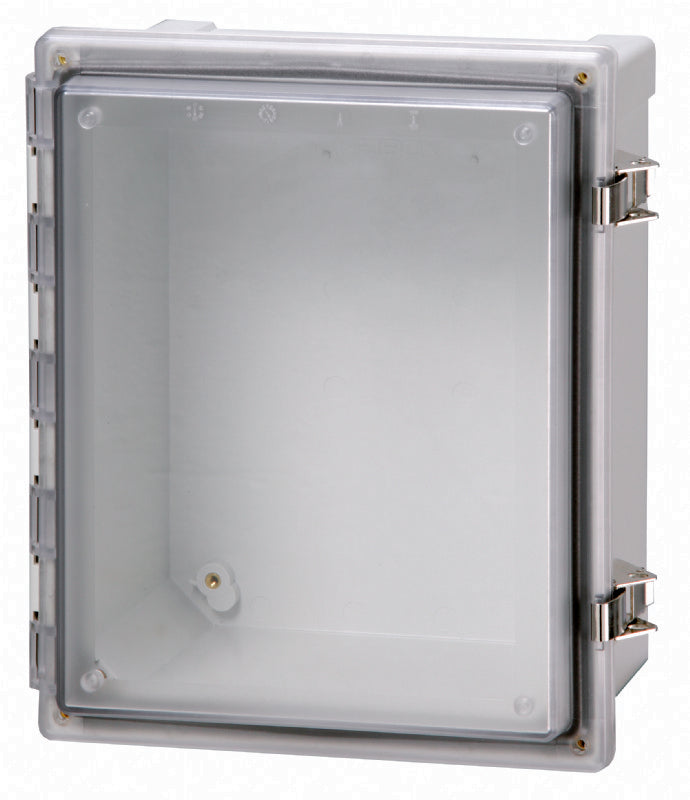

The product is a 10 x 8 x 6 inch polycarbonate enclosure featuring a hinged transparent screw cover with stainless steel quick release latch It is designed for robust applications and offers a durable structure to protect internal components The enclosure comes with a base that includes 10-32 brass inserts, a latched cover equipped with a formed in place PUR gasket, and a stainless hinge pin It includes quick release latches and an enclosure mounting foot kit, along with accessory screws for panel mounting.

This enclosure is suitable for various installations requiring a reliable and secure housing solution.

Features and Benefits:

    •Hinged transparent screw cover for easy access.

    •Durable stainless steel quick release latch.

    •Constructed from high-quality polycarbonate material.

    •Ingress Protection rated IP66 and IP67 for dust and water resistance.

    •Impact resistance rating of IK09 for durability.

    •Wide temperature range of -40 … 175 °F (-40 … 80 °C).

    •Fully insulated electrical insulation.

    •UV resistance compliant to UL 508.

    •Halogen free material contributing to enhanced safety.

    •Flammability rating of UL94-5VA (f1).

Specifications:

 Dimensions (inch) 10 x 8 x 6
 Dimensions (mm) 254 x 203.2 x 152.4
 Material Polycarbonate
 Base Color RAL 7035 - light grey
 Cover Color Transparent
 Gasket Material Polyurethane
 Temperature (continuous °F) -40 … 175
 Temperature (continuous °C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical Insulation Fully insulated
 Halogen Free Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
