AR1086CHSSL 10 x 8 x 6 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

AR1086CHSSL 10 x 8 x 6 Inch PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch

SKU: AR1086CHSSL Download PDF

Now $16,229.00
BEFORE   Now $16,229.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

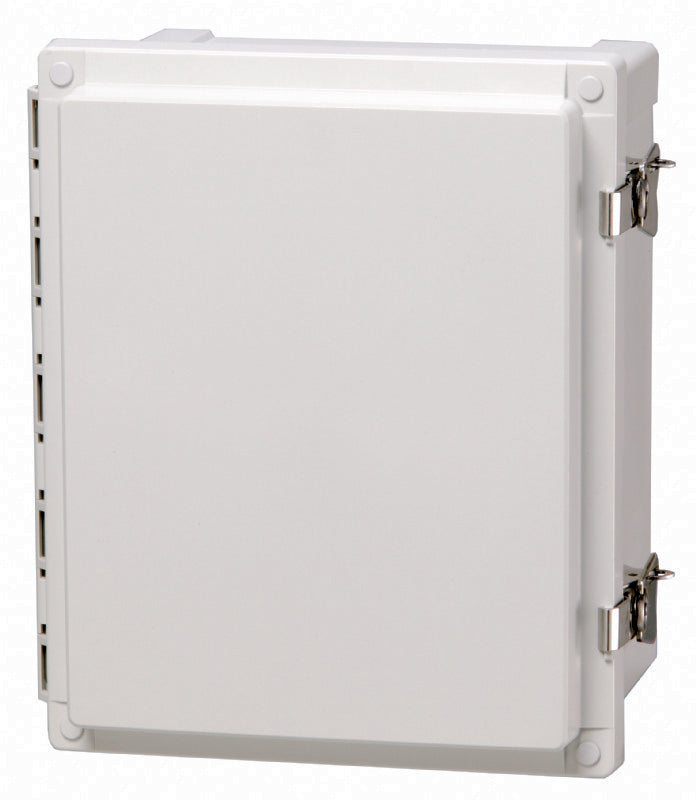

10 x 8 x 6 Inch PC Enclosure, Hinged opaque screw cover w/SS Lockable latch This PC Enclosure features a hinged design with an opaque screw cover and a stainless steel lockable latch It is designed to meet various UL/cUL ratings including Type 4, 4X, 6, 6P, 12, 12K and 13, ensuring high-quality protection The enclosure is made from polycarbonate and includes a gasket made of polyurethane for added sealing.

Features and Benefits:

    •Hinged cover for easy access.

    •Stainless steel lockable latch for enhanced security.

    •Includes mounting foot kit and accessory screws for panel mounting.

    •Constructed with durable polycarbonate material.

    •Light grey color (RAL 7035) for visibility and aesthetics.

    •Ingress Protection rating of IP66 and IP67.

    •Impact resistance IK09 for added durability.

Specifications:

 Dimensions (Height, Width, Depth): 10 x 8 x 6 inches (254 x 203.2 x 152.4 mm)
 Material: Polycarbonate
 Base Color: RAL 7035 - light grey
 Cover Color: RAL 7035 - light grey
 Gasket Material: Polyurethane
 Continuous Temperature (°F): -40 … 175
 Continuous Temperature (°C): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical Insulation: Fully insulated
 Halogen Free: Yes
 UV Resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
