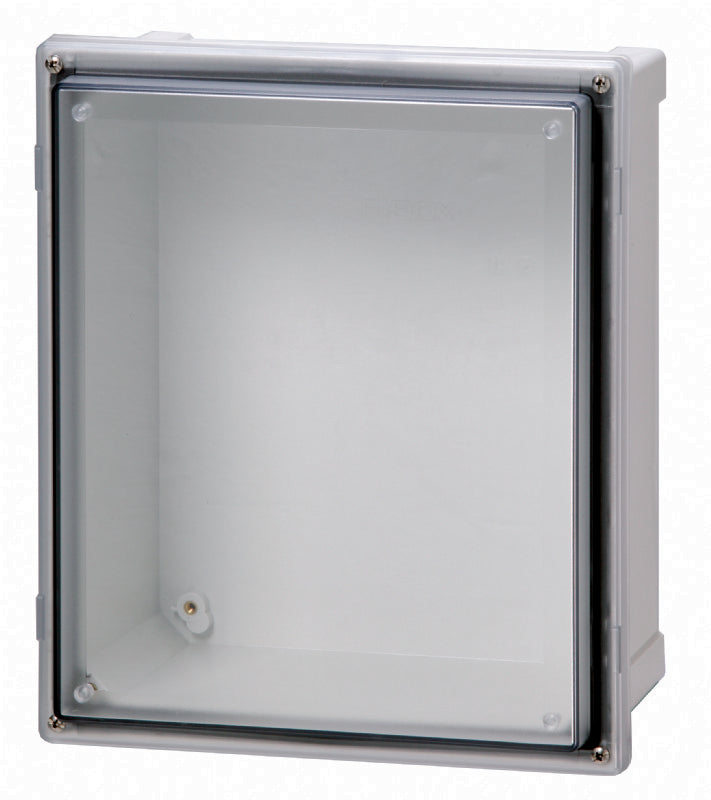

AR1086CHSCT 10 x 8 x 6 Inch PC Enclosure, Hinged Transparent Screw Cover

Name: AR1086CHSCT 10 x 8 x 6 Inch PC Enclosure, Hinged Transparent Screw Cover
Brand: FIBOX
SKU: AR1086CHSCT
Price: 16965.00 USD
Availability: InStock

SKU: SKU: AR1086CHSCT Download PDF

QTY:

Now $16,965.00

~~BEFORE~~ Now $16,965.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The product is a 10 x 8 x 6 Inch PC Enclosure with a hinged transparent screw cover This enclosure provides several mounting options with its base that has 10-32 brass inserts and is designed to offer protection as specified by UL Type 4, 4X, 6, 6P, 12, 12K and 13 standards It is equipped with a formed in place PUR gasket, a stainless hinge pin, and two cover screws, along with an enclosure mounting foot kit and accessory screws for panel mounting.

Features and Benefits:

•Hinged transparent screw cover for easy access.

•Constructed from durable polycarbonate material.

•UL/cUL compliant for various protection types.

•IP66 and IP67 ingress protection ratings.

•IK09 impact resistance rating.

•UV resistant and halogen-free materials.

•Suitable for a wide temperature range from -40 to 175 °F.

Specifications:

Product nr	8561018
Dimensions (inch)	10 x 8 x 6
Material	Polycarbonate
Base color	RAL 7035 - light grey
Cover color	Transparent
Gasket material	Polyurethane
Temperature (°F)	-40 … 175
Temperature (°C)	-40 … 80
Ingress Protection (EN 60529)	IP66; IP67;
Impact Resistance (EN 62262)	IK09;
Electrical insulation	Fully insulated
Halogen free	Yes
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695)	960 °C
