Home / AR1086CHSC 10 x 8 x 6 Inch PC Enclosure, Hinged Opaque Raised Screw cover
1 1

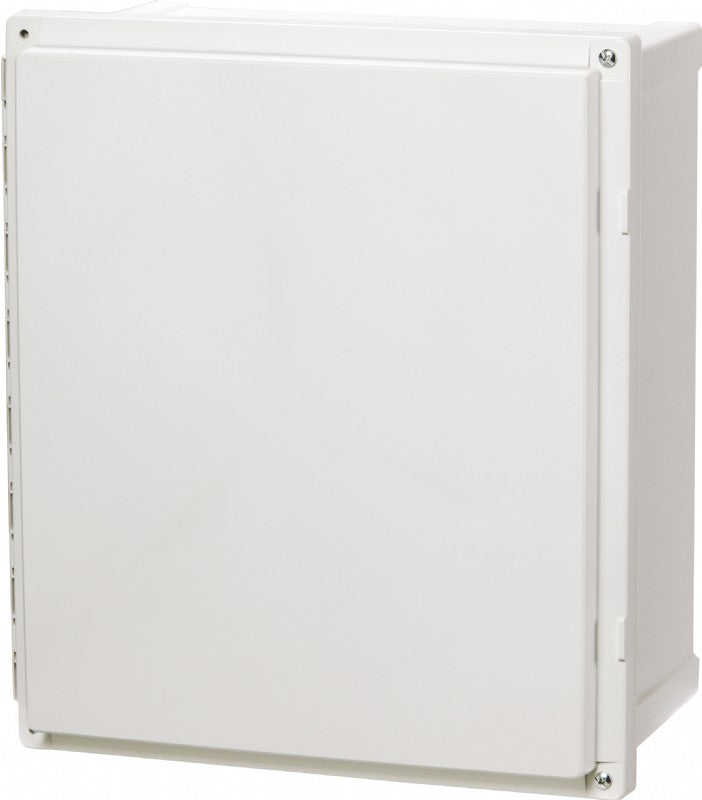

AR1086CHSC 10 x 8 x 6 Inch PC Enclosure, Hinged Opaque Raised Screw cover

AR1086CHSC 10 x 8 x 6 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR1086CHSC Download PDF

Now $14,138.00
BEFORE   Now $14,138.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 6 Inch PC Enclosure with a hinged opaque raised screw cover designed for use in demanding conditions The enclosure features a hinged screw cover and is made from durable polycarbonate material It is rated for UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13, providing excellent protection against various environmental factors The base and cover colors are RAL 7035 light grey, and the enclosure includes a formed-in-place PUR gasket, stainless hinge pin, and 2 cover screws.

Features and Benefits:

    •Constructed from robust polycarbonate material.

    •Hinged opaque raised screw cover for easy access.

    •Rated for UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13 for various applications.

    •IP66 and IP67 ingress protection against dust and water.

    •Impact resistant with IK09 rating.

    •Maintains electrical insulation and is halogen free.

    •Suitable for use in external environments and harsh conditions where protection from dust, water, and impact is crucial.

    •Ideal for housing electrical components and equipment.

Specifications:

 Dimensions (inches) 10 x 8 x 6
 Dimensions (mm) 254 x 203.2 x 152.4
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F continuous) -40 ... 175
 Temperature (°C continuous) -40 ... 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
