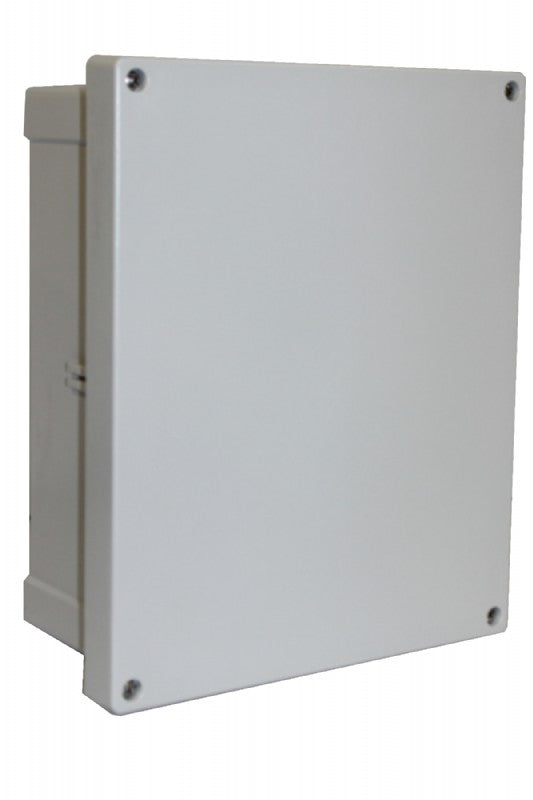

AR1085FSC 10 x 8 x 5 Inch PC Enclosure, Flat Opaque Screw Cover

AR1085FSC 10 x 8 x 5 Inch PC Enclosure, Flat Opaque Screw Cover

SKU: AR1085FSC Download PDF

Now $11,513.00
BEFORE   Now $11,513.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 5 Inch PC Enclosure, Flat Opaque Screw Cover is designed to meet rigorous standards This enclosure features a flat screw cover and is constructed from polycarbonate, which provides excellent strength and durability under various environmental conditions The product includes a formed-in-place PUR gasket and 4 stainless cover screws, ensuring a robust and secure assembly This enclosure is suitable for a variety of applications and includes an enclosure mounting foot kit along with accessory screws for panel mounting.

Features and Benefits:

    •Constructed from high-quality polycarbonate material.

    •Flat screw cover design for easy access.

    •Includes a formed-in-place PUR gasket for better sealing.

    •Comes with a mounting foot kit and accessory screws for added convenience.

    •IP66/IP67 rated for excellent ingress protection.

    •Impact resistance rated at IK09.

    •Suitable for electrical and electronic equipment protection.

    •Used in environments requiring high ingress protection.

    •Ideal for outdoor and indoor applications.

Specifications:

 Dimensions Height (inch) 10
 Dimensions Width (inch) 8
 Dimensions Depth (inch) 5
 Materials Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 … 175
 Temperature (continuous) °C -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67;
 Impact Resistance IK09;
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
