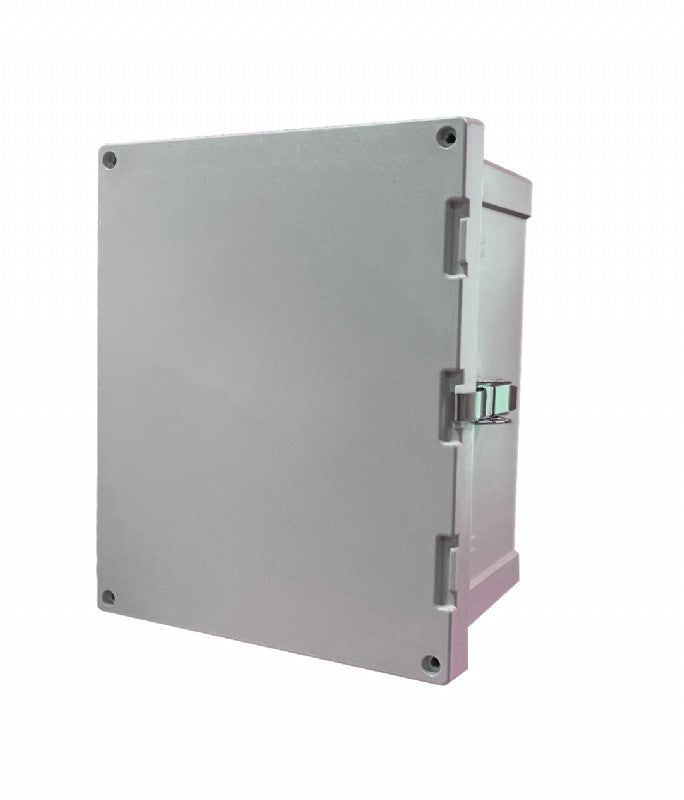

AR1085CHFSSL 10 x 8 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover
AR1085CHFSSL 10 x 8 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover
SKU: SKU: AR1085CHFSSL
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
10 x 8 x 5 Inch PC Enclosure, Hinged Latched Opaque Flat Cover This enclosure features a hinged cover and a latched opaque flat cover, suitable for various applications and ratings including UL Type NEMA 4, 4X, 6, 6P, 12, 12K, and 13 It boasts an IP66 and IP67 rating along with IK09 impact resistance The base comes with 10-32 brass inserts, quick release latches, and includes an enclosure mounting foot kit.
Accessory 10-32 screws are provided for panel mounting.
Features and Benefits:
•Hinged cover with latched opaque flat cover.
•UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13.
•IP66 and IP67 rated for ingress protection.
•IK09 impact resistant.
•Includes mounting foot kit and panel mounting screws.
•Constructed from polycarbonate material.
Specifications:
| Dimensions (inch) | 10 x 8 x 5 |
| Material | Polycarbonate |
| Base color | RAL 7035 -light grey |
| Cover color | RAL 7035 -light grey |
| Gasket material | Polyurethane |
| Continuous Temperature (°F) | -40 … 175 |
| Continuous Temperature (°C) | -40 … 80 |
| Ingress Protection (EN 60529) | IP66; IP67 |
| Impact Resistance (EN 62262) | IK09 |
| Electrical insulation | Fully insulated |
| Halogen free (DIN/VDE 0472, Part 815) | Yes |
| UV resistance | UL 508 |
| Flammability Rating | UL94-5VA (f1) |
| Glow Wire Test (IEC 60695) | 960 °C |
