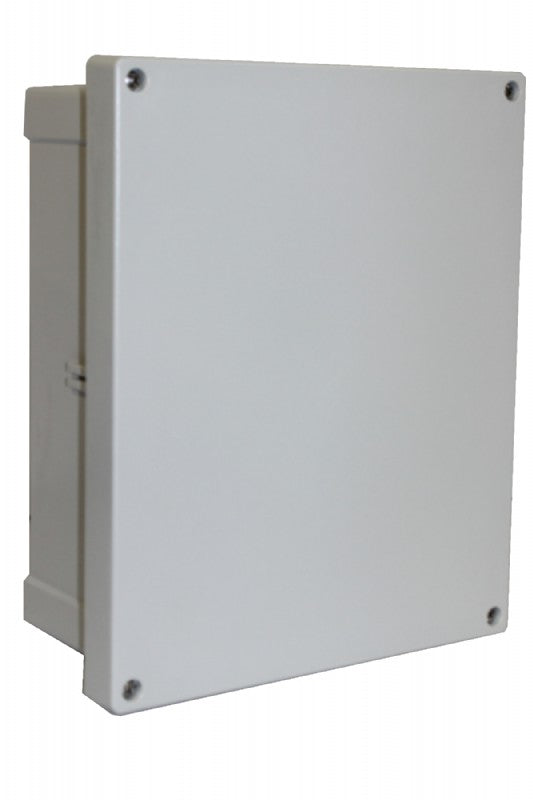

AR1085CHFSC 10 x 8 x 5 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

AR1085CHFSC 10 x 8 x 5 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

SKU: AR1085CHFSC   Download PDF

Qty:
Now $14,138.00   Web pricing policy
BEFORE   Now $14,138.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

10 x 8 x 5 Inch PC Enclosure, Hinged Opaque Flat Screw Cover PC Enclosure, Hinged Opaque Flat Screw Cover.

Features and Benefits:

    •UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13.

    •Hinged screw flat cover.

    •Base with 10-32 brass inserts.

    •Cover with formed in place PUR gasket.

    •Stainless hinge pin and 2 cover screws.

    •Enclosure mounting foot kit.

    •Accessory 10-32 screws for panel mounting.

Specifications:

 Dimensions (inches) 10 x 8 x 5
 Dimensions (mm) 254 x 203.2 x 127
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F continuous) -40 … 175
 Temperature (°C continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
