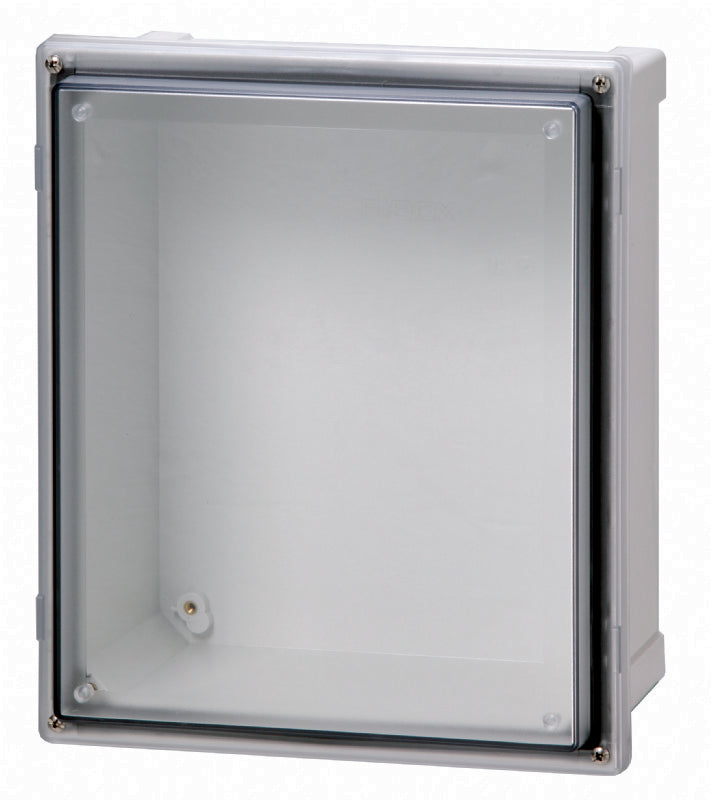

AR1084SCT 10 x 8 x 4 Inch PC Enclosure, Transparent screw cover

AR1084SCT 10 x 8 x 4 Inch PC Enclosure, Transparent screw cover

SKU: AR1084SCT Download PDF

Now $13,626.00
BEFORE   Now $13,626.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 4 Inch PC Enclosure, Transparent screw cover This enclosure comes with a screw cover, base featuring 10-32 brass inserts, cover with formed in place PUR gasket, and 4 stainless cover screws The enclosure includes a mounting foot kit and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection (EN 60529): IP66; IP67.

    •Impact Resistance (EN 62262): IK09.

    •Electrical insulation: Fully insulated.

    •Halogen free (DIN/VDE 0472, Part 815).

    •UV resistance: UL 508.

    •Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1).

    •Glow Wire Test (IEC 60695): 960 °C.

Specifications:

 Dimensions (mm) 254 x 203.2 x 101.6
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 UL 1741 Compliant
 Impact Resistance IK09
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
