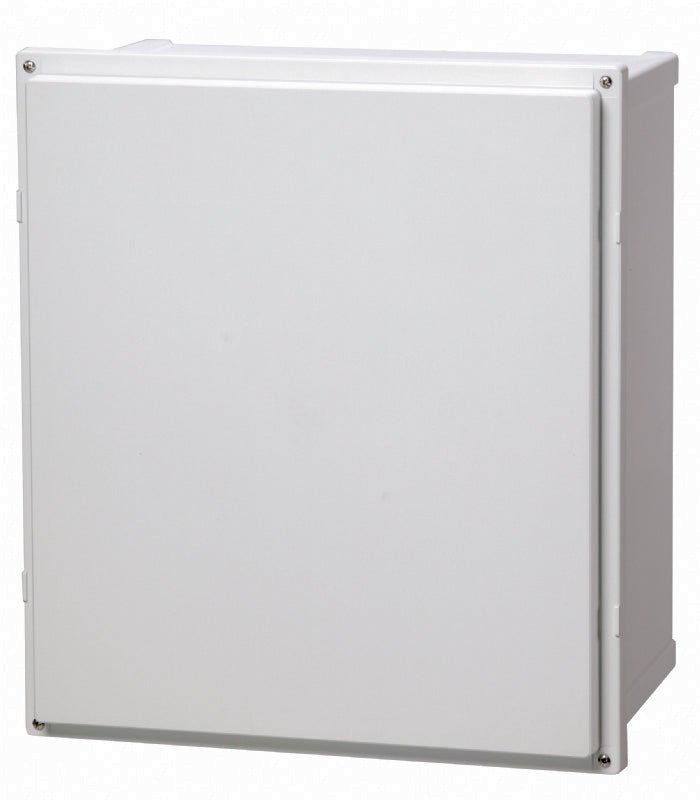

AR1084SC 10 x 8 x 4 Inch PC Enclosure Raised Opaque Screw Cover

AR1084SC 10 x 8 x 4 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR1084SC Download PDF

Now $11,357.00
BEFORE   Now $11,357.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 4 Inch PC Enclosure Raised Opaque Screw Cover provides a durable housing for electrical components The enclosure includes a screw cover with a formed in place PUR gasket and 4 stainless cover screws, allowing for an IP66 and IP67 rating for protection against water and dust It is made of polycarbonate material and is designed for uses that require robust environmental protection The mounting base features 10-32 brass inserts and the package includes accessory screws for panel mounting, making it practical for various installations.

Features and Benefits:

    •IP66 and IP67 rated for dust and water protection.

    •Includes a formed in place PUR gasket.

    •Constructed from durable polycarbonate material.

    •Compliant with UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 ratings.

    •Impact resistance rated IK09.

    •Halogen free and UV resistant.

Specifications:

 Dimensions (inches) Height: 10, Width: 8, Depth: 4
 Dimensions (mm) Height: 254, Width: 203.2, Depth: 101.6
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
