Home / AR1084CHSSLT 10 x 8 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover w/S.S. Lockable latch
1 1

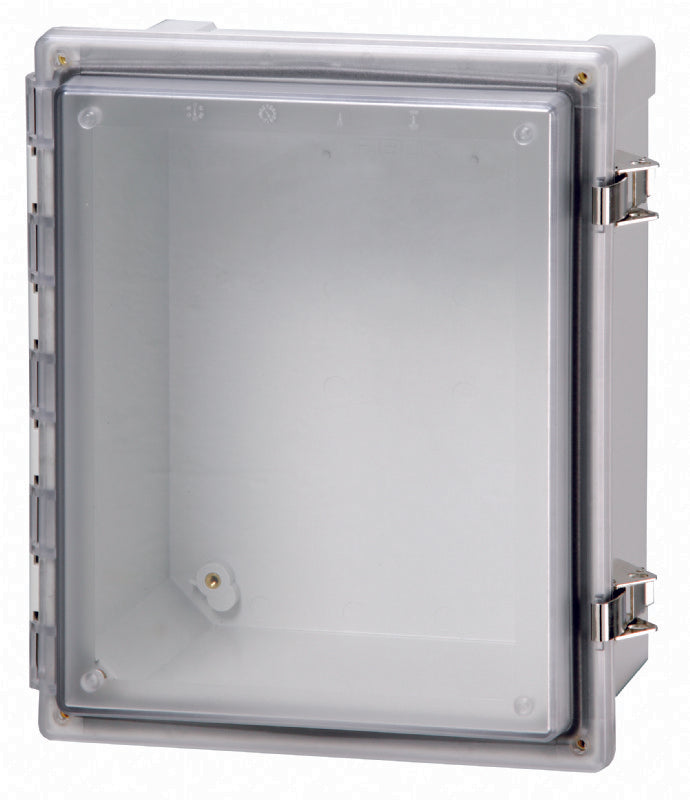

AR1084CHSSLT 10 x 8 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover w/S.S. Lockable latch

AR1084CHSSLT 10 x 8 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover w/S.S. Lockable latch

SKU: AR1084CHSSLT Download PDF

Now $19,084.00
BEFORE   Now $19,084.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 10 x 8 x 4 Inch PC Enclosure features a hinged transparent screw cover with a stainless steel lockable latch It is suitable for various applications and offers robust construction and high protection ratings.

Features and Benefits:

    •Hinged transparent screw cover.

    •Stainless steel lockable latch.

    •Constructed from polycarbonate.

    •UL/cUL rated for types 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress protection rating of IP66 and IP67.

    •Impact resistance rating of IK09.

    •Temperature range from -40 to 175 °F (-40 to 80 °C).

Specifications:

 Dimensions Height (inch) 10
 Dimensions Width (inch) 8
 Dimensions Depth (inch) 4
 Dimensions Height (mm) 254
 Dimensions Width (mm) 203.2
 Dimensions Depth (mm) 101.6
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent
 Gasket material Polyurethane
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
