Home / AR1084CHSCT 10 x 8 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover
1 1

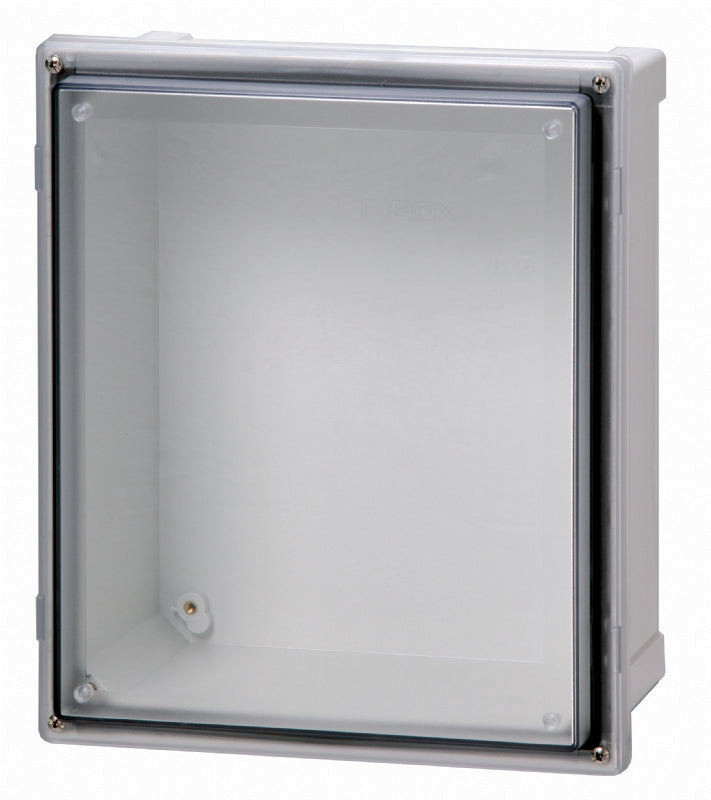

AR1084CHSCT 10 x 8 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover

AR1084CHSCT 10 x 8 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover

SKU: AR1084CHSCT Download PDF

Now $16,314.00
BEFORE   Now $16,314.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 4 Inch PC Enclosure, Hinged Transparent Screw Cover.

Features and Benefits:

    •Hinged screw cover.

    •Base with 10-32 brass inserts.

    •Cover with formed in place PUR gasket.

    •Stainless hinge pin and 2 cover screws.

    •Enclosure mounting foot kit.

    •Accessory 10-32 screws for panel mounting.

Specifications:

 Height (inch) 10
 Width (inch) 8
 Depth (inch) 4
 Height (mm) 254
 Width (mm) 203.2
 Depth (mm) 101.6
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
