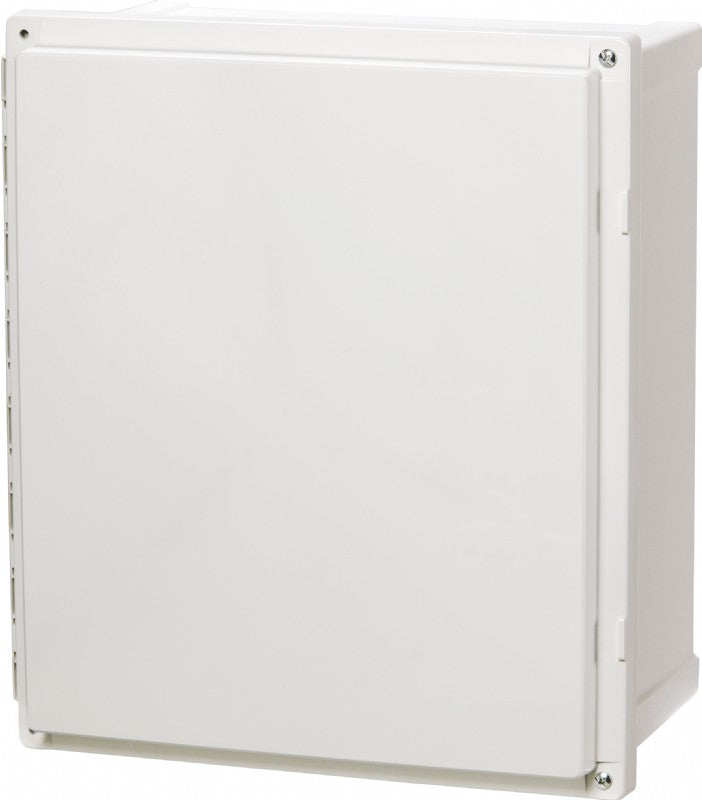

AR1084CHSC 10 x 8 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover

Name: AR1084CHSC 10 x 8 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover
Brand: FIBOX
SKU: AR1084CHSC
Price: 13618.00 USD
Availability: InStock

SKU: SKU: AR1084CHSC Download PDF

QTY:

Now $13,618.00

~~BEFORE~~ Now $13,618.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 4 Inch PC Enclosure, Hinged Opaque Raised Screw cover PC Enclosure, Hinged Opaque Raised Screw cover Enclosure mounting foot kit Accessory 10-32 screws for panel mounting.

Features and Benefits:

•Hinged screw cover.

•Base with 10-32 brass inserts.

•Formed in place PUR gasket.

•Stainless hinge pin.

•UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 compliant.

•Ingress protection IP66; IP67.

•IK09 impact resistance.

•Fully insulated electrical insulation.

•Halogen free.

•UV resistant.

•Flammability rating UL94-5VA (f1).

•Glow wire test at 960 °C.

Specifications:

Dimensions (inch)	10 x 8 x 4
Height (mm)	254
Width (mm)	203.2
Depth (mm)	101.6
Material	Polycarbonate
Base Color	RAL 7035 -light grey
Cover Color	RAL 7035 -light grey
Gasket Material	Polyurethane
Temperature °F (continuous)	-40 … 175
Temperature °C (continuous)	-40 … 80
Ingress Protection	IP66; IP67
Impact Resistance	IK09
Electrical insulation	Fully insulated
Halogen free	Yes
UV resistance	UL 508
Flammability Rating	UL94-5VA (f1)
Glow Wire Test	960 °C
