AR1083FSC 10 x 8 x 3 Inch PC Enclosure, Flat Opaque Screw Cover

AR1083FSC 10 x 8 x 3 Inch PC Enclosure, Flat Opaque Screw Cover

SKU: AR1083FSC Download PDF

Now $11,357.00
BEFORE   Now $11,357.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

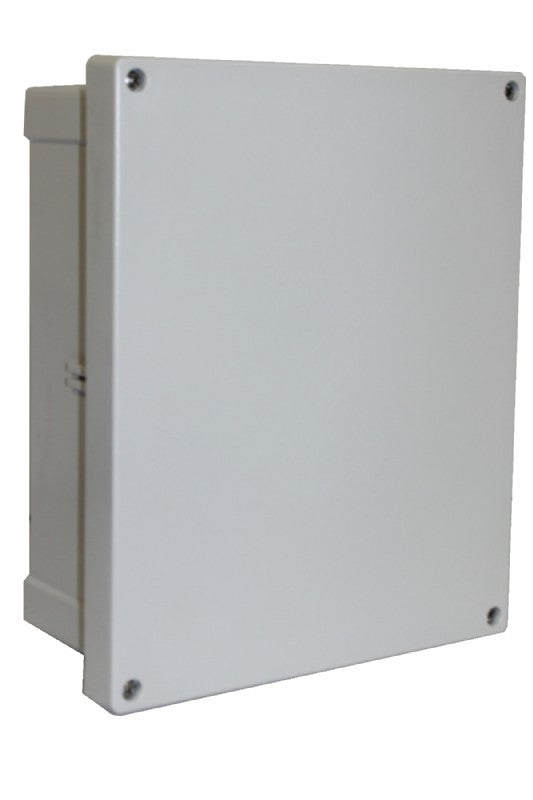

The product is a 10 x 8 x 3 Inch PC Enclosure equipped with a flat opaque screw cover It is designed for robust applications and offers high protection levels with its impressive IP ratings The enclosure, made from polycarbonate, ensures durability and resilience under various conditions It includes a base with 10-32 brass inserts and a formed-in-place PUR gasket, secured by stainless cover screws The enclosure comes with a mounting foot kit and accessory screws for panel mounting.

This enclosure is suitable for use across a wide range of temperatures and is compliant with multiple UL standards.

Features and Benefits:

    •Flat screw cover providing easy access.

    •Constructed with polycarbonate for enhanced durability.

    •Ingress Protection ratings of IP66 and IP67 suitable for harsh environments.

    •Impact resistance classified as IK09, ensuring protection against physical impacts.

    •Temperature range from -40 °F to 175 °F (-40 °C to 80 °C) adaptable for various climates.

    •Halogen-free materials ensuring safety in case of fire.

    •UV resistance increases longevity.

    •Fully insulated for electrical safety.

Specifications:

 Dimensions (inch) 10 x 8 x 3
 Dimensions (mm) 254 x 203.2 x 76.2
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
