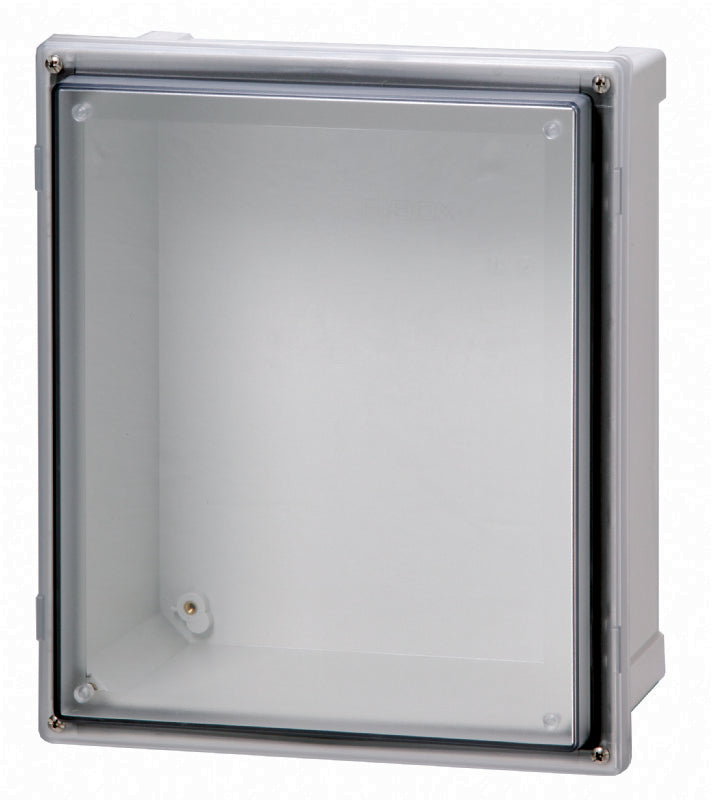

AR10106SCT 10 x 10 x 6 Inch PC Enclosure, Transparent screw cover

AR10106SCT 10 x 10 x 6 Inch PC Enclosure, Transparent screw cover

SKU: AR10106SCT Download PDF

Now $16,163.00
BEFORE   Now $16,163.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 10 x 6 Inch PC Enclosure, Transparent screw cover Enclosure includes a screw cover, base with 10-32 brass inserts, cover with formed in place PUR gasket, and 4 stainless cover screws It also comes with an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13.

    •IP66; IP67.

    •IK09 impact resistance.

    •Material: Polycarbonate.

    •Base color: RAL 7035 - light grey.

    •Cover color: Transparent.

    •Gasket material: Polyurethane.

    •Fully insulated electrical insulation.

    •Halogen free.

    •UV resistance: UL 508.

    •Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1).

    •Glow Wire Test: 960 °C.

Specifications:

 Height (inch) 10
 Width (inch) 10
 Depth (inch) 6
 Height (mm) 254
 Width (mm) 254
 Depth (mm) 152.4
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 UL 1741 Compliant Yes
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
