AR10106CHSST 10 x 10 x 6 Inch PC Enclosure, Hinged Transparent screw cover w/S.S. Quick release latch

AR10106CHSST 10 x 10 x 6 Inch PC Enclosure, Hinged Transparent screw cover w/S.S. Quick release latch

SKU: AR10106CHSST Download PDF

Now $20,504.00
BEFORE   Now $20,504.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

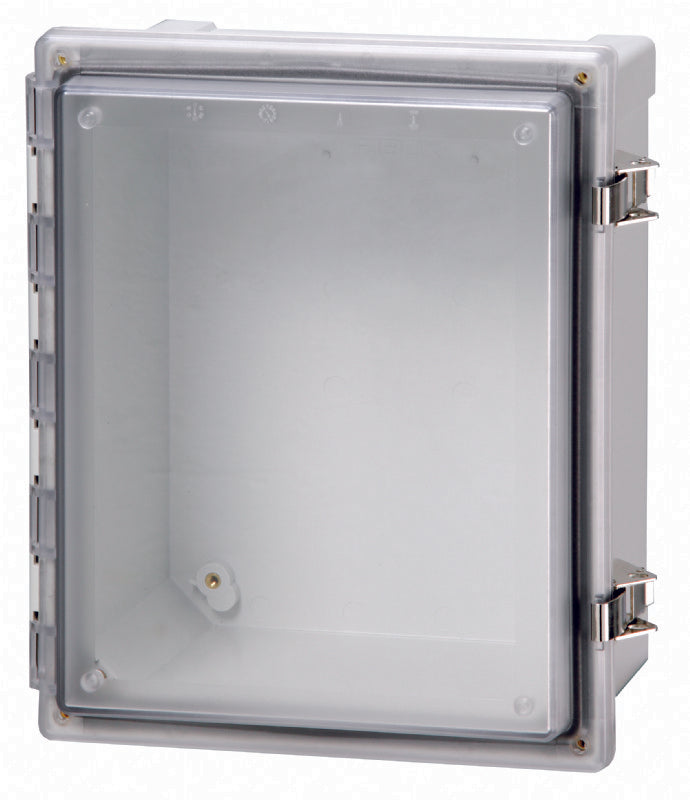

10 x 10 x 6 Inch PC Enclosure, Hinged Transparent screw cover w/SS Quick release latch The enclosure is UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13 rated with an Ingress Protection rating of IP66 and IP67 It features a hinged cover, a base with 10-32 brass inserts, a latched cover with a formed in place polyurethane gasket, and a stainless steel hinge pin along with quick release latches Additionally, it includes an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

Features and Benefits:

    •Hinged cover for easy access.

    •Quick release latches make it convenient to open.

    •Durable polycarbonate material for strength.

    •Ingress Protection rating of IP66 and IP67 for water and dust resistance.

    •Impact Resistance rating of IK09 for enhanced durability.

Specifications:

 Dimensions (Height x Width x Depth): 10 x 10 x 6 inches
 Material: Polycarbonate
 Base Color: RAL 7035 - light grey
 Cover Color: Transparent
 Gasket Material: Polyurethane
 Temperature (°F, continuous): -40 to 175
 Temperature (°C, continuous): -40 to 80
 UL/cUL Type: 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection: IP66; IP67
 Impact Resistance: IK09
 Electrical Insulation: Fully insulated
 Halogen Free: Yes
 UV Resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test: 960 °C
