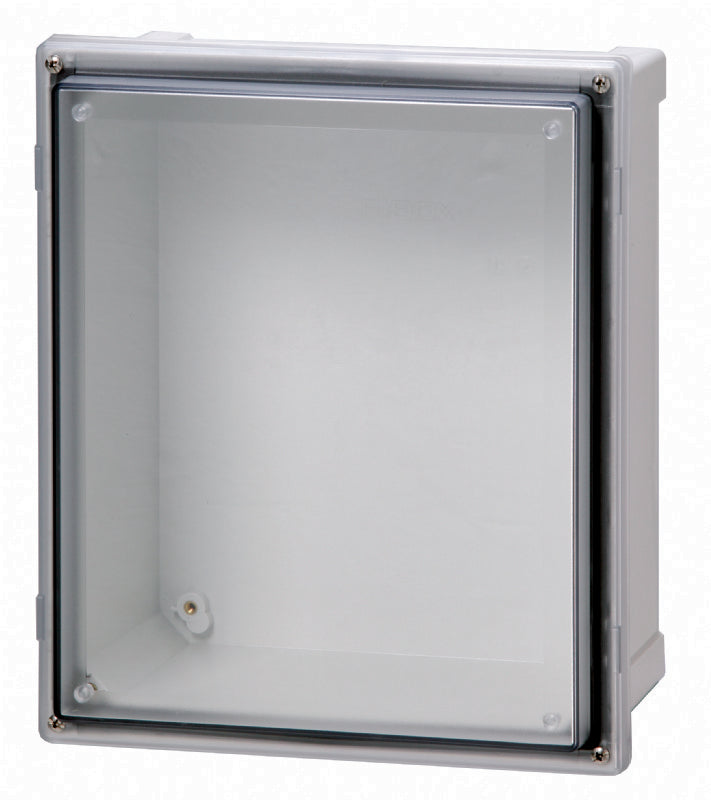

AR10106CHSCT 10 x 10 x 6 Inch PC Enclosure, Hinged Transparent Screw Cover

AR10106CHSCT 10 x 10 x 6 Inch PC Enclosure, Hinged Transparent Screw Cover

SKU: AR10106CHSCT Download PDF

Now $18,425.00
BEFORE   Now $18,425.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 10 x 10 x 6 Inch PC Enclosure featuring a hinged transparent screw cover It is constructed from polycarbonate material and designed to provide robust protection with UL/cUL ratings of 4, 4X, 6, 6P, 12, 12K and 13 The enclosure includes a hinged screw cover, a base with 10-32 brass inserts, a formed in place PUR gasket, a stainless hinge pin, and two cover screws It comes with an enclosure mounting foot kit and accessory 10-32 screws for panel mounting.

The product complies with the ingress protection ratings IP66 and IP67, and has an impact resistance rating of IK09 Suitable for temperature ranges from -40 °C to 80 °C.

Features and Benefits:

    •Hinged transparent screw cover for easy access.

    •Constructed with polycarbonate for durability.

    •Ingress protection rating of IP66 and IP67.

    •Impact resistance rating of IK09.

    •UL94-5VA and UL94-V0 flammability ratings.

    •Fully insulated for electrical safety.

    •Halogen free with UV resistance.

Specifications:

 Dimensions (inch) 10 x 10 x 6
 Dimensions (mm) 254 x 254 x 152.4
 Base Color RAL 7035 -light grey
 Cover Color Transparent
 Material Polycarbonate
 Gasket Material Polyurethane
 Temperature Range (°F) -40 … 175
 Temperature Range (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical Insulation Fully insulated
 Halogen Free Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
