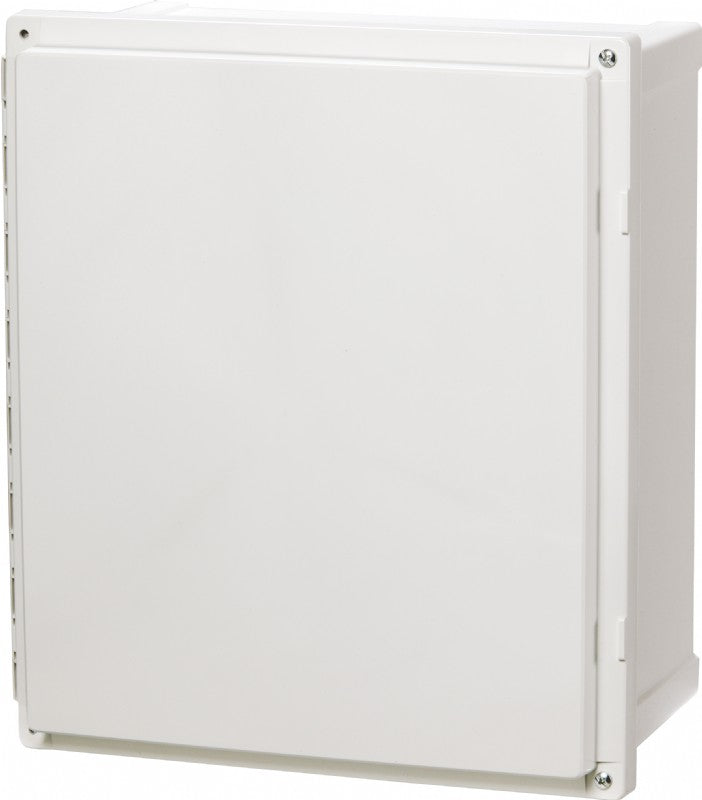

AR10106CHSC 10 x 10 x 6 Inch PC Enclosure, Hinged Opaque Raised Screw cover

AR10106CHSC 10 x 10 x 6 Inch PC Enclosure, Hinged Opaque Raised Screw cover

SKU: AR10106CHSC Download PDF

Now $15,353.00
BEFORE   Now $15,353.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 10 x 6 Inch PC Enclosure features a hinged opaque raised screw cover The enclosure includes a hinged screw cover with a base constructed from polycarbonate, equipped with 10-32 brass inserts, a formed in place polyurethane gasket, stainless hinge pin, and 2 cover screws It is designed for various applications requiring durable housing.

Features and Benefits:

    •UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13 compliant.

    •IP66 and IP67 ingress protection ratings.

    •Constructed from polycarbonate for durability.

    •Includes enclosure mounting foot kit.

    •Impact resistance rated IK09.

    •Fully insulated for electrical safety.

    •Halogen free material.

    •UV resistant.

Specifications:

 Dimensions (inch): 10 x 10 x 6
 Dimensions (mm): 254 x 254 x 152.4
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: RAL 7035 - light grey
 Gasket material: Polyurethane
 Temperature (°F): -40 to 175
 Temperature (°C): -40 to 80
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical insulation: Fully insulated
 Halogen free: Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
