AR IPW 1614 SC Protection Window - HMI Cover

AR IPW 1614 SC Protection Window - HMI Cover

SKU: AR IPW 1614 SC Download PDF

Now $26,314.00
BEFORE   Now $26,314.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

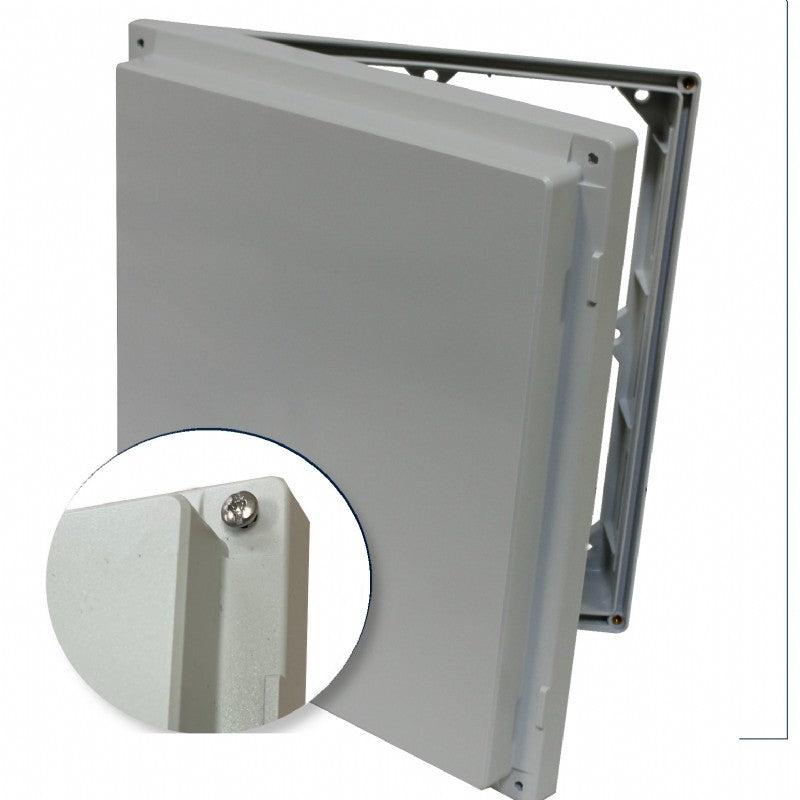

Opaque hinged screw locking cover designed for protection applications This cover provides a reliable enclosure with the ratings IP66 and IP67 for ingress protection It is constructed from materials that ensure durability and resistance to various environmental conditions.

Features and Benefits:

    •Opaque hinged screw locking cover.

    •UL 508 certification for safety.

    •Excellent ingress protection rating IP66 and IP67.

    •Impact resistance classified under IK09.

    •Halogen free materials.

    •UV resistance with a flammability rating of UL94-5VA.

Specifications:

 Dimensions (inch) 16 x 14 x 3.31
 Dimensions (mm) 406 x 355 x 88
 Material RAL 7035 - light grey
 Base color RAL 7035 - light grey
 Cover color Polyurethane
 Operating temperature (°F) -40 … 140
 Ingress Protection Rating IP66; IP67
 Impact Resistance Rating IK09
 Halogen free Yes
 UV resistance UL94-5VA (f1)
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
