AR IPW 1412 K FPart # 8561844 Protection Window - HMI Cover

AR IPW 1412 K FPart # 8561844 Protection Window - HMI Cover

SKU: AR IPW 1412 K F Download PDF

Now $20,646.00
BEFORE   Now $20,646.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

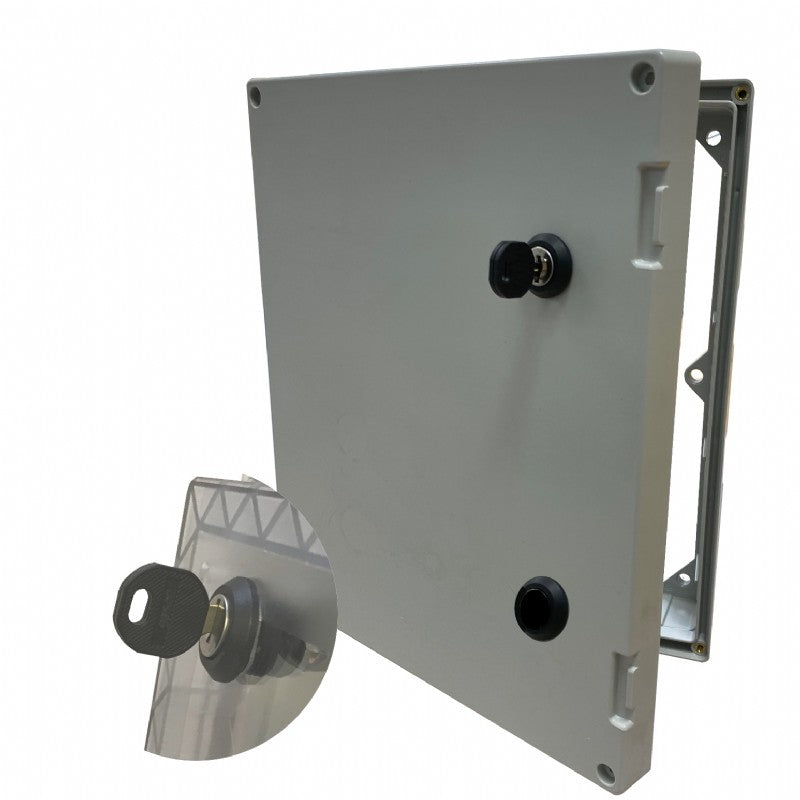

Opaque flat cover with key lock This protection window is designed for use in various environments, offering durability and resistance It features a height of 14 inches, a width of 12 inches, and a depth of 331 inches, making it suitable for control and monitoring applications.

Features and Benefits:

    •Constructed from Polycarbonate, ensuring long-lasting durability.

    •Base color is RAL 7035 - light grey, while the cover color is transparent.

    •Excellent temperature range of -40 to 175 °F (-40 to 80 °C).

    •Halogen free, making it safe for various applications.

    •UV resistance enhances longevity in outdoor use.

    •Impact and ingress protection rated at IK09 and IP66/IP67 respectively.

Specifications:

 Dimensions (inches): 14 x 12 x 3.31
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Gasket material: Polyurethane
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695): 960 °C
