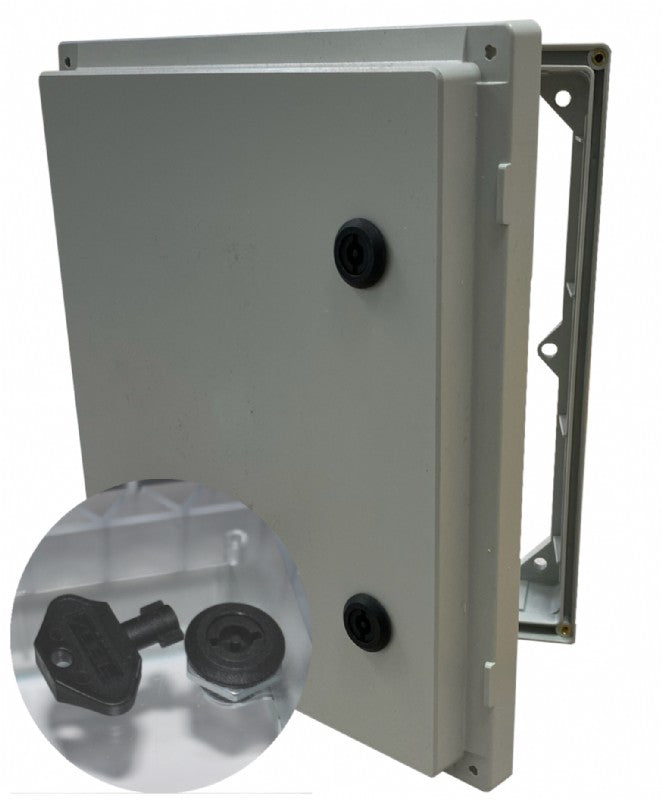

AR IPW 1412 B Protection Window - HMI Cover

AR IPW 1412 B Protection Window - HMI Cover

SKU: AR IPW 1412 B Download PDF

Now $18,487.00
BEFORE   Now $18,487.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The Protection Window - HMI Cover is designed with an opaque cover featuring 3mm quarter turn bit locks This unit provides exceptional protection with high ratings including UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13, and achieves Ingress Protection ratings of IP66 and IP67 The cover is built to withstand harsh conditions, ensuring reliability in various applications.

Features and Benefits:

    •Opaque cover with 3mm quarter turn bit locks.

    •Constructed from durable polycarbonate.

    •Base and cover color in RAL 7035 - light grey.

    •Temperature resistant from -40 to 175 °F (-40 to 80 °C).

    •UL/cUL approved with multiple NEMA ratings.

    •High impact resistance with IK09 rating.

    •Halogen-free material for safety.

    •UV resistance as per UL 508.

    •Flammability rating UL94-5VA (f1).

    •Glow wire tested at 960 °C.

Specifications:

 Height (inch) 14
 Width (inch) 12
 Depth (inch) 3.31
 Height (mm) 350
 Width (mm) 300
 Depth (mm) 88
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
