AR IPW 108 SC T Protection Window - HMI Cover

AR IPW 108 SC T Protection Window - HMI Cover

SKU: AR IPW 108 SC T Download PDF

Now $13,162.00
BEFORE   Now $13,162.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

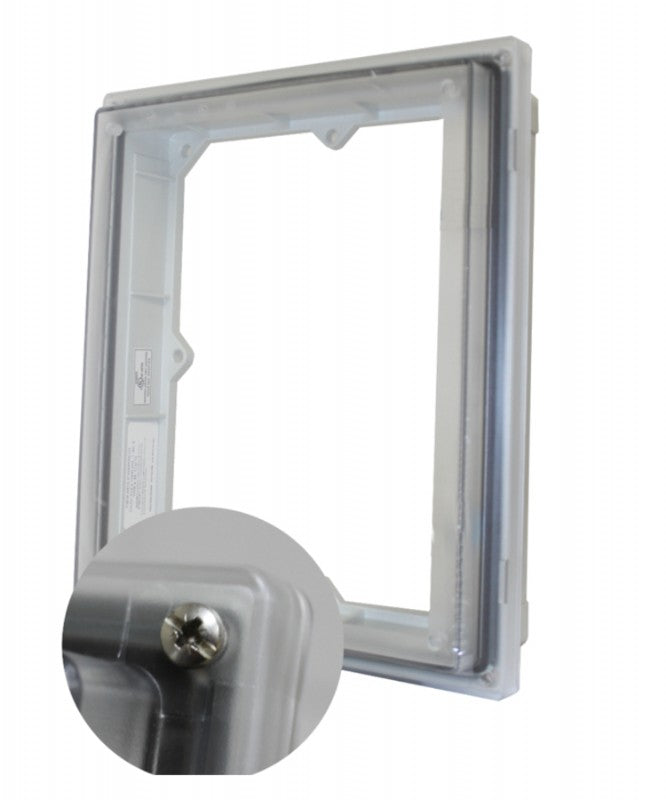

Transparent, clear hinged screw locking cover It offers protection with compatibility to various UL Type certifications including NEMA 4, 4X, 6, 6P, 12, 12K, and 13 The enclosure has dimensions of 10 x 8 x 331 inches and is made from polycarbonate with a light grey finish Additionally, it withstands temperatures ranging from -40 to 175 °F.

Features and Benefits:

    •Hinged screw locking cover for secure protection.

    •Complies with multiple UL Type ratings.

    •Constructed from durable polycarbonate material.

    •Long temperature resilience from -40 to 175 °F.

    •Ingress protection rating of IP66 and IP67.

    •Impact resistance rated IK09.

    •Halogen free and UV resistant.

Specifications:

 Dimensions Height (inch): 10
 Dimensions Width (inch): 8
 Dimensions Depth (inch): 3.31
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67;
 Impact Resistance (EN 62262): IK09;
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
