Home / AR IPW 108 SC Protection Window - HMI Cover
1 1

AR IPW 108 SC Protection Window - HMI Cover

AR IPW 108 SC Protection Window - HMI Cover

SKU: AR IPW 108 SC Download PDF

Now $10,720.00
BEFORE   Now $10,720.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

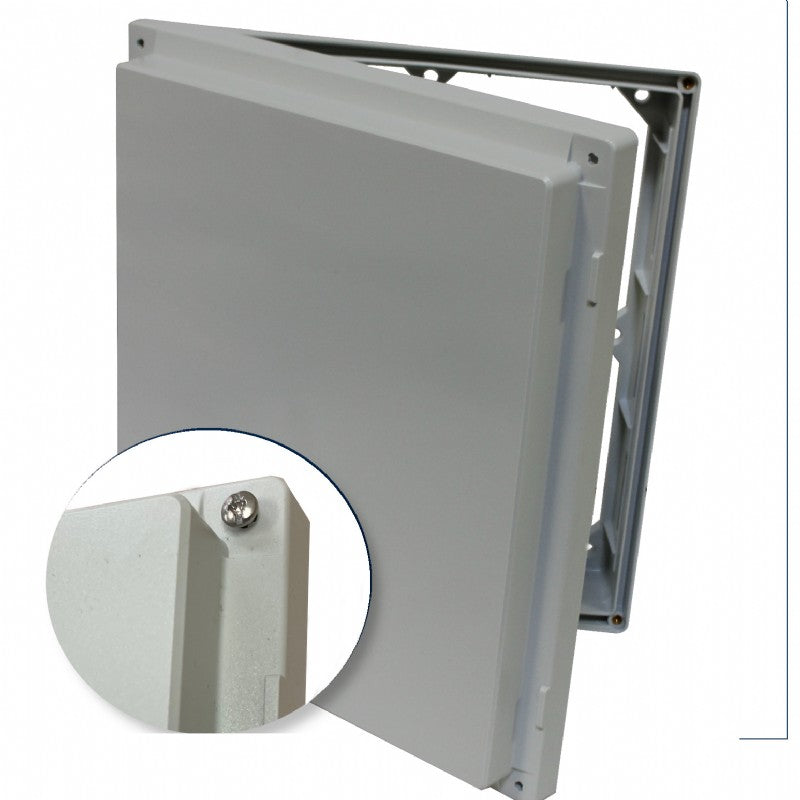

Opaque hinged screw locking cover designed for various environmental protections Suitable for use in a range of harsh conditions while providing secure access to HMI devices.

Features and Benefits:

    •Protection Rating: UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection Rating: IP66; IP67.

    •Impact Resistance Rating: IK09.

    •Made from durable polycarbonate material.

    •Gasket made from polyurethane to ensure a tight seal.

    •UV resistant as per UL 508 standards.

    •Halogen free material.

    •Flammability Rating: UL94-5VA (f1) for housing and UL94-V0 (f1) for cover.

    •Continuous temperature range from -40 °F to 175 °F (-40 °C to 80 °C).

Specifications:

 Dimensions (inches) 10 x 8 x 3.31
 Dimensions (mm) 250 x 200 x 88
 Base color RAL 7035 -light grey
 Cover color Transparent
 Glow Wire Test 960 °C
