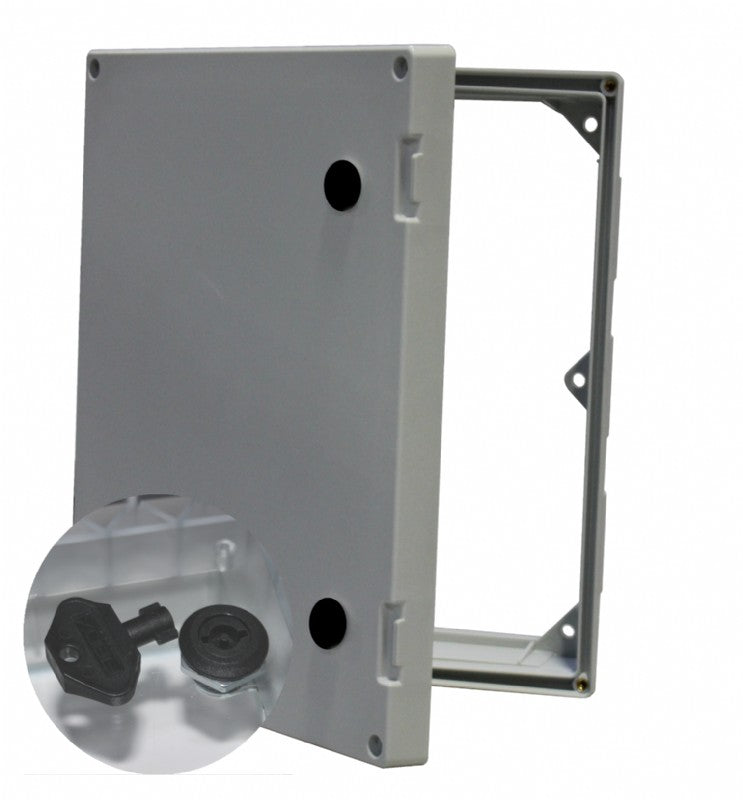

AR IPW 108 B F Protection Window - HMI Cover

AR IPW 108 B F Protection Window - HMI Cover

SKU: AR IPW 108 B F Download PDF

Now $11,185.00
BEFORE   Now $11,185.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

Opaque flat covers with 3mm qtr turn bit locks The product dimensions are 10 x 8 x 231 inches, with equivalent measurements in millimeters being 250 x 200 x 88 Made of polycarbonate material, it features a base color and cover color defined as RAL 7035 - light grey, and is equipped with a polyurethane gasket The product is designed to withstand continuous temperatures ranging from -40 to 175 °F, or -40 to 80 °C.

Specifications:

 Height (inch): 10
 Width (inch): 8
 Depth (inch): 3.31
 Height (mm): 250
 Width (mm): 200
 Depth (mm): 88
 Material: Polycarbonate
 Base color: RAL 7035 -light grey
 Cover color: RAL 7035 -light grey
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67;
 Impact Resistance (EN 62262): IK09;
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test (IEC 60695): 960 °C
