Description:

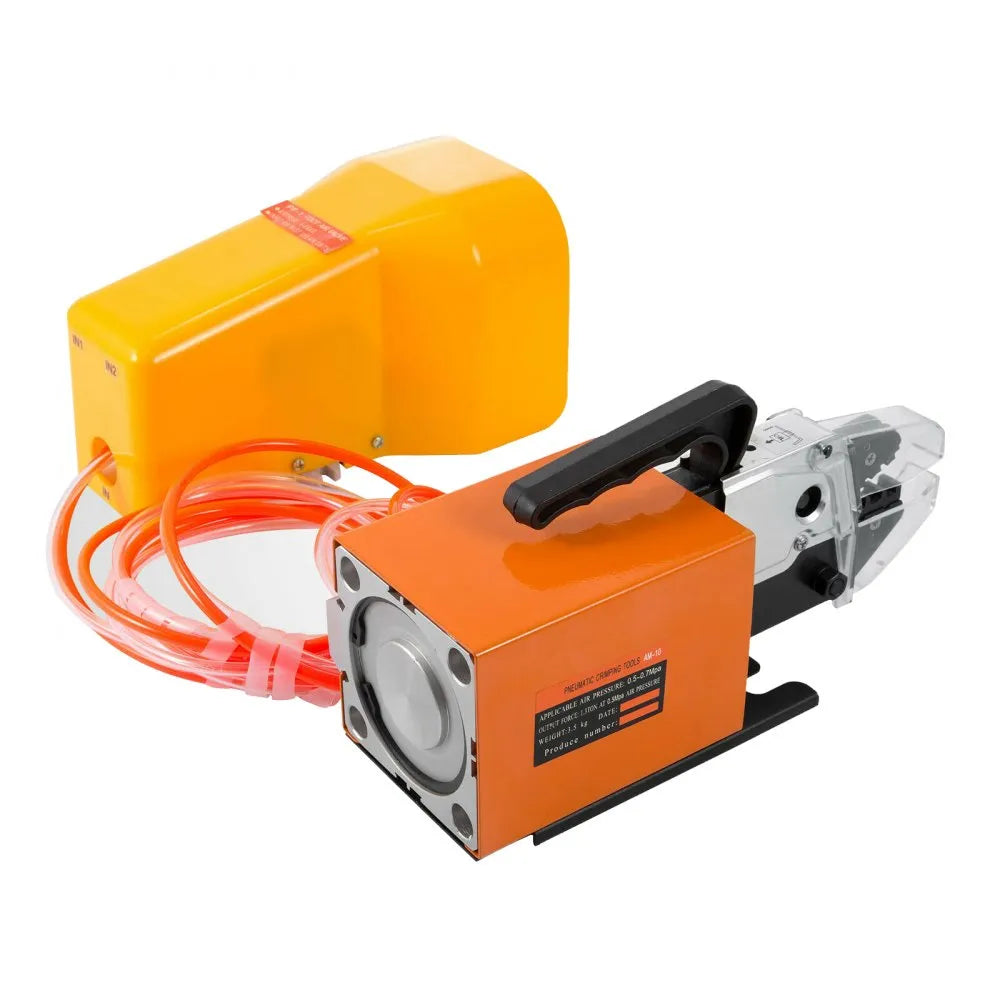

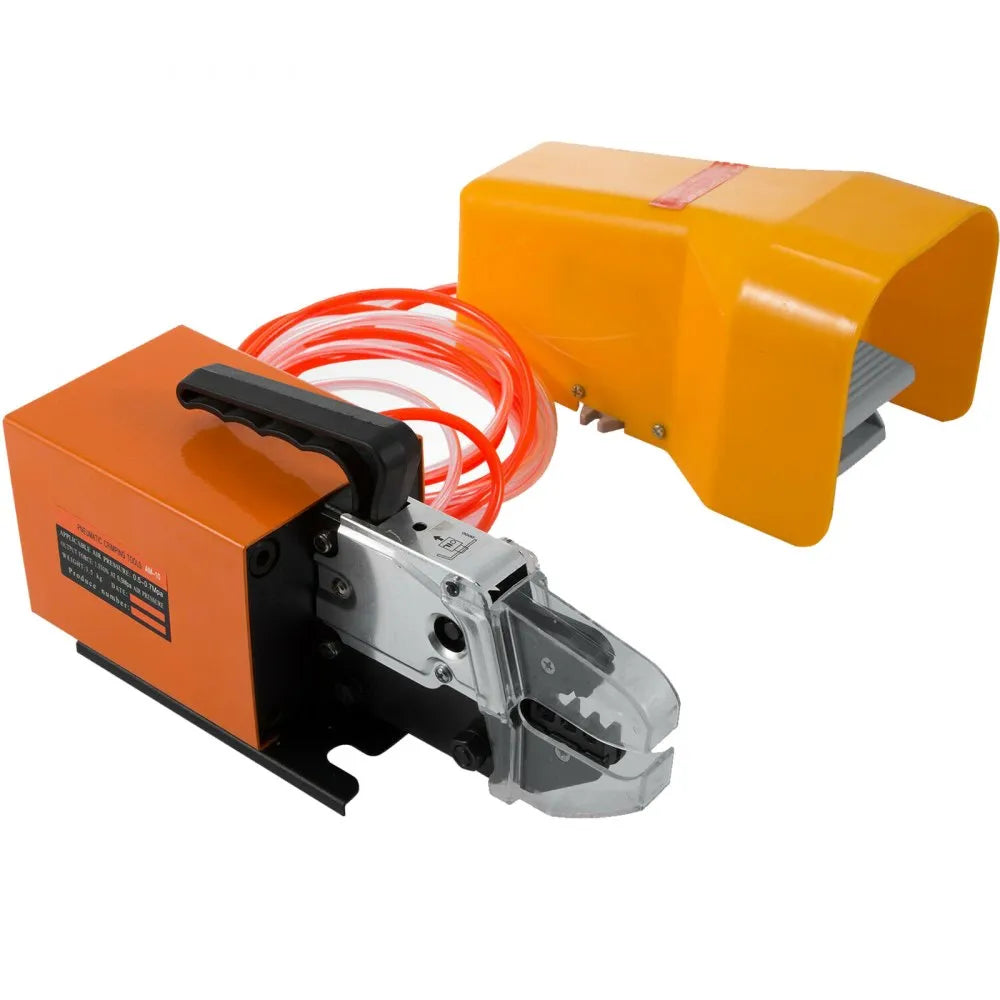

Introducing the AM-10 Pneumatic Crimping Tool, engineered for exceptional efficiency and quality in crimping operations This robust machine features a dual-action standard cylinder and is capable of handling non-insulated terminals up to 16 mm², pre-insulated terminals up to 6 mm², and tube terminals as large as 35 mm² Notably, it is compatible with manual crimper die sets, allowing you to easily interchange components.
Built with durability in mind, this user-friendly crimper is an excellent addition for a variety of tasks.
Features and Benefits:

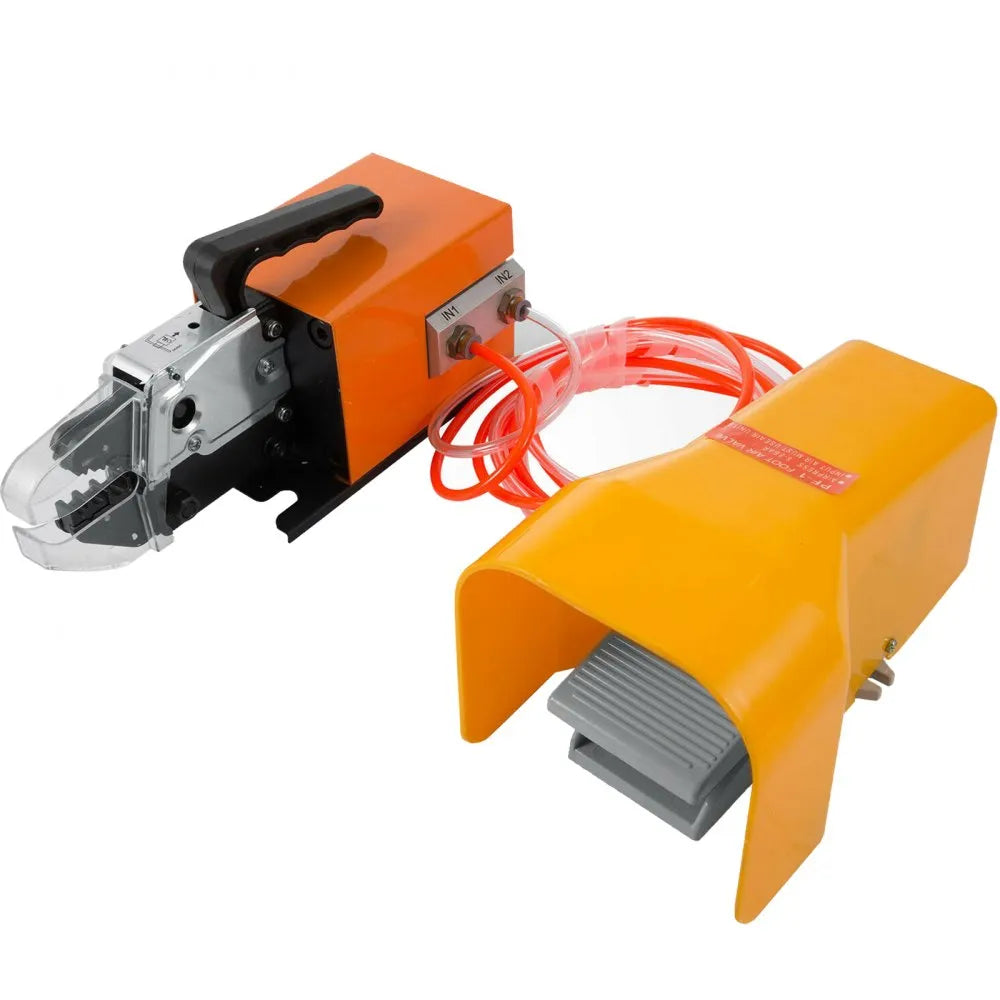

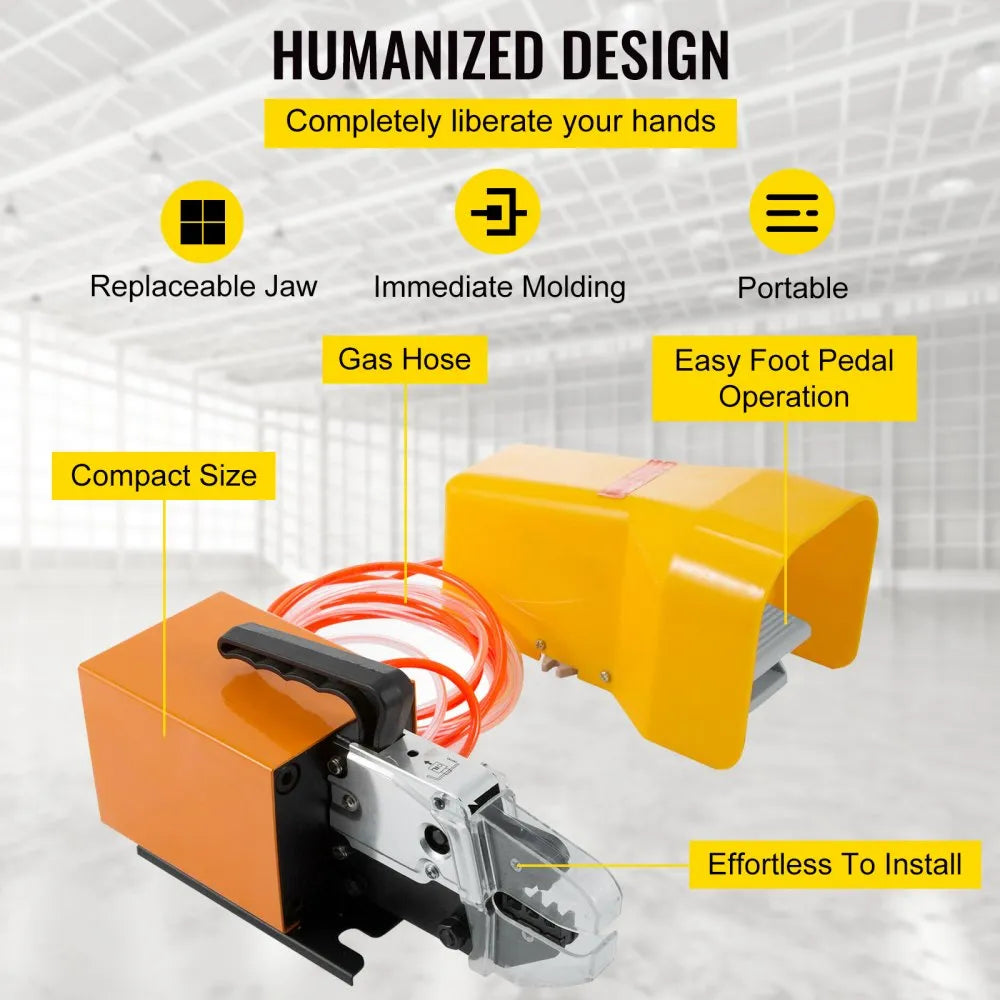

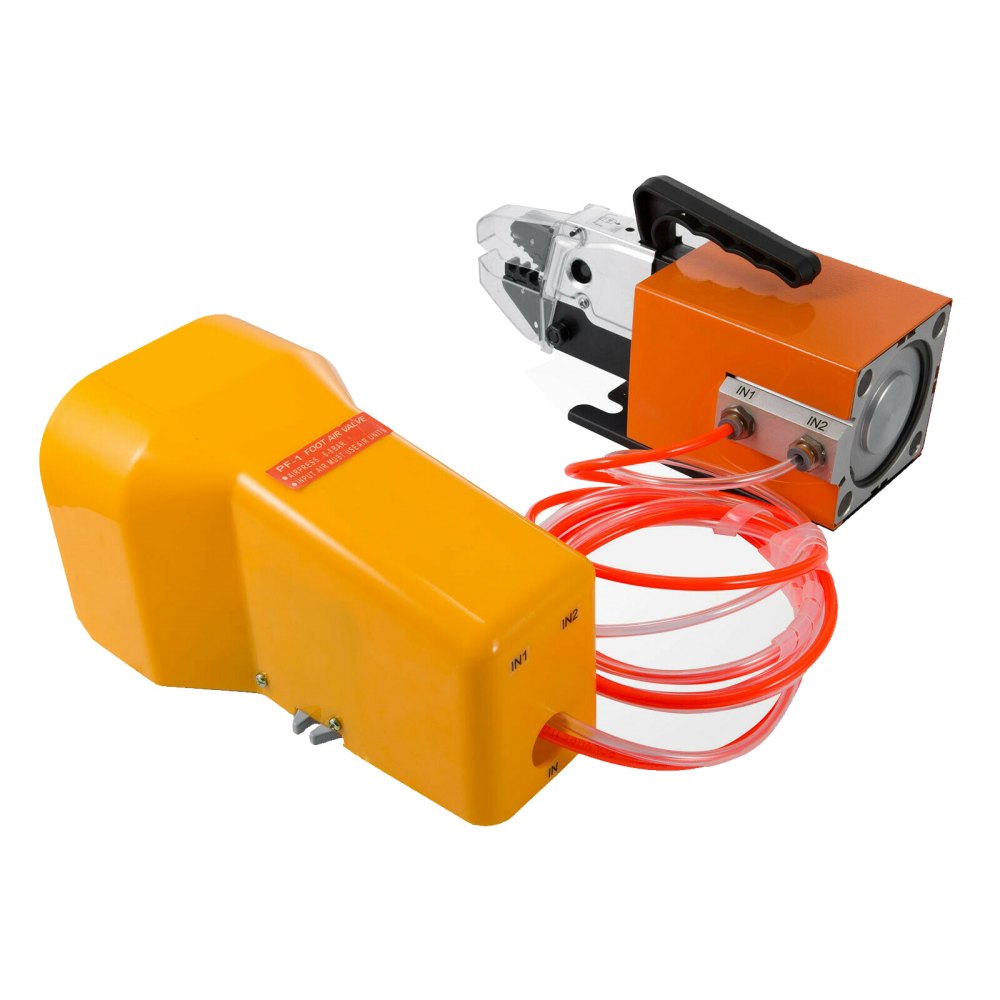

•Labor-saving foot-operated air valve design.

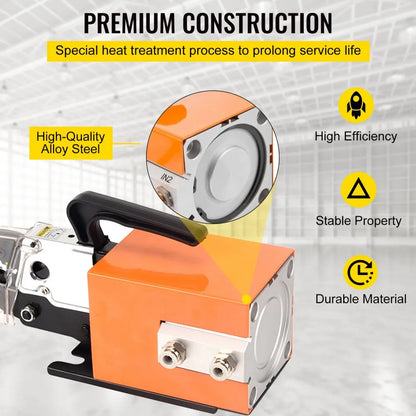

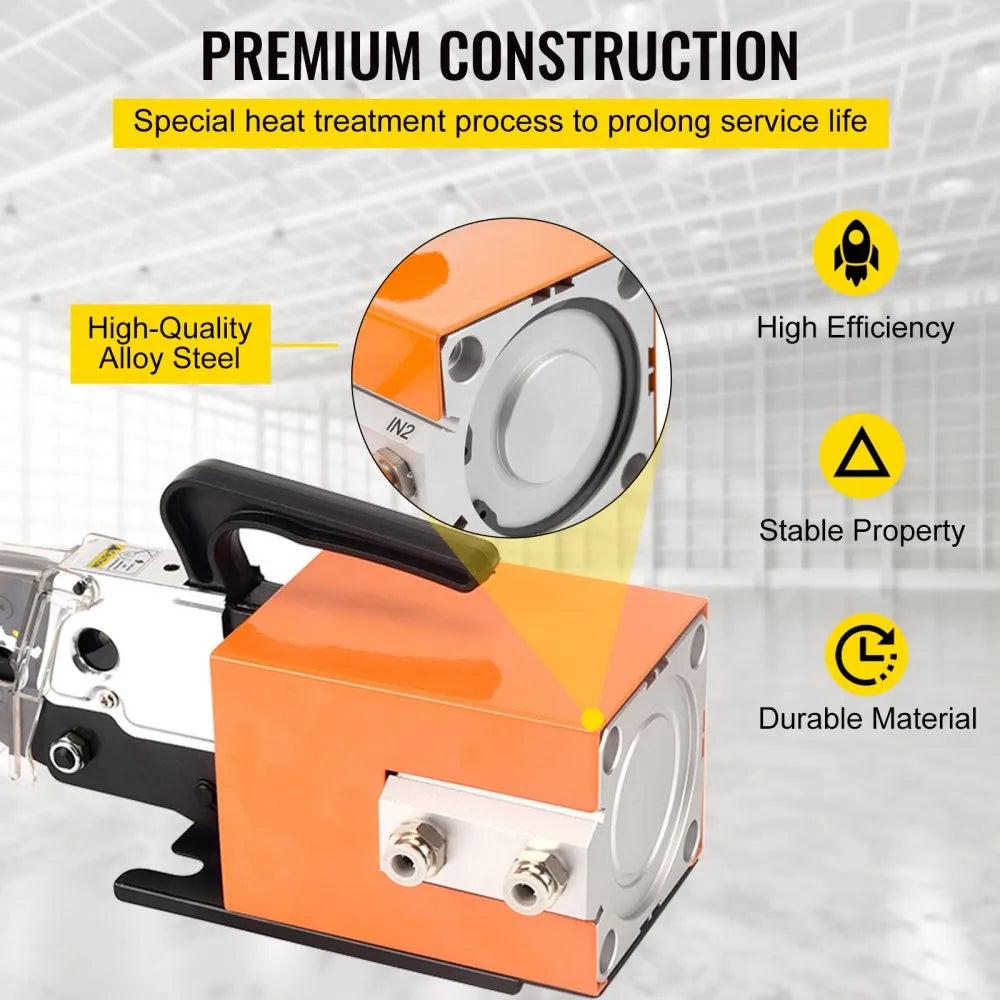

•Solid steel material ensures durability.
•High-precision jaws for accurate crimping.
•Ergonomic design contributes to comfortable operation.

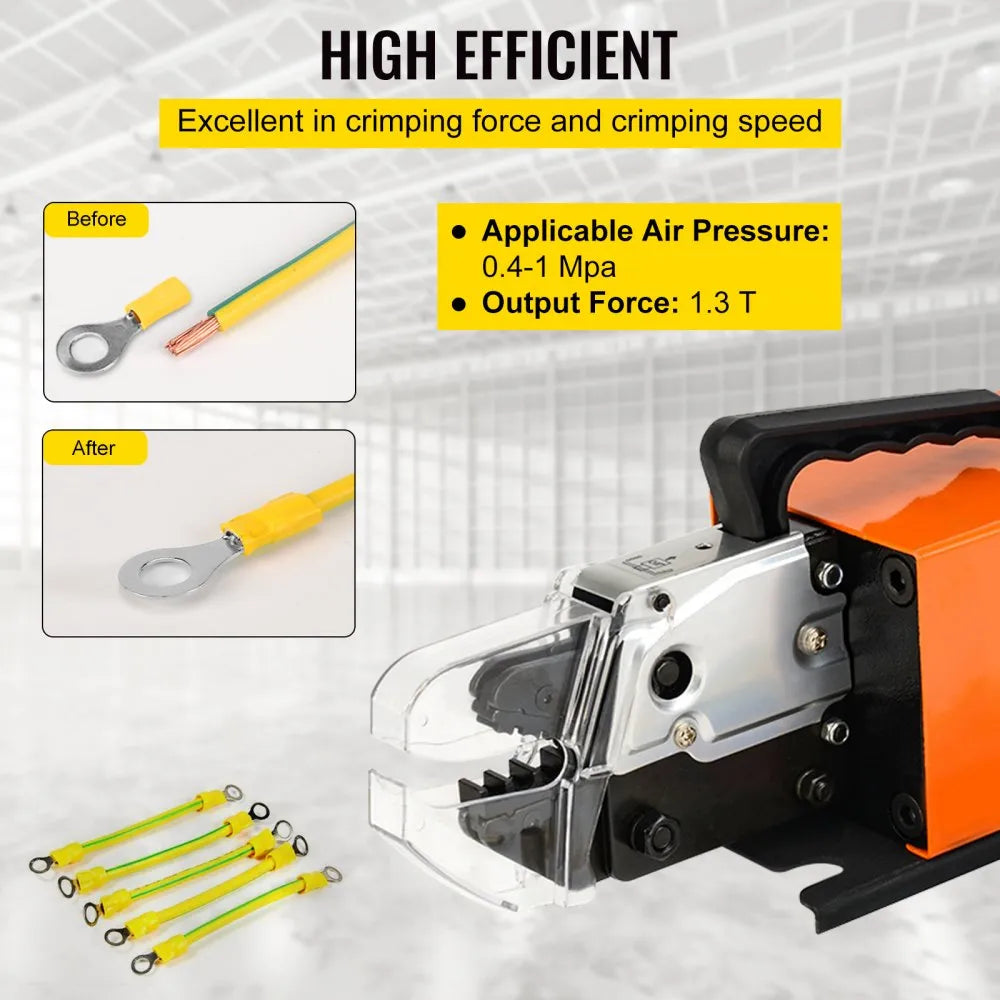

•High output force of 1.3 T for efficient performance.

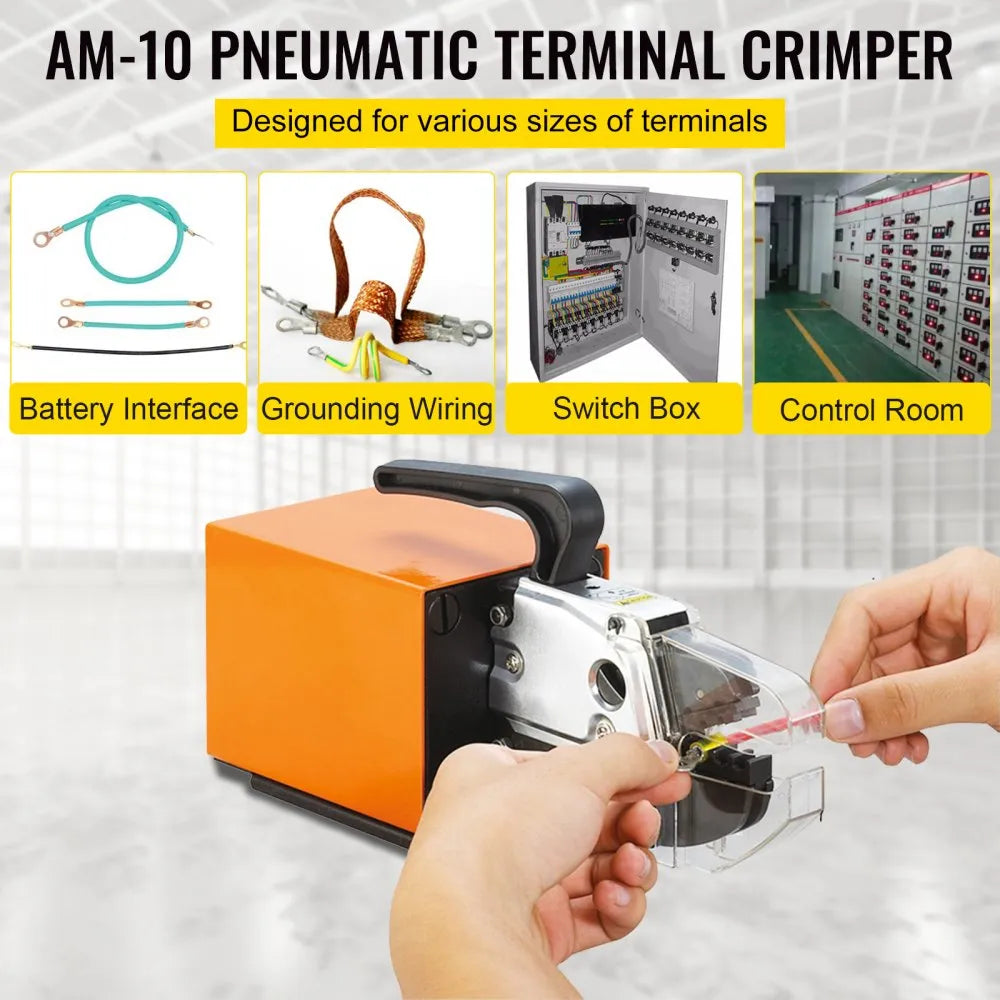

•Wiring harness assembly.
•Mass transit applications.
•Production lines for manufacturing tasks.
Specifications:
| Model | AM-10 |
| Material | Tool steel |
| Output Force | 1.3 T |
| Air Pressure | 0.5-0.7 Mpa |
| Max. Operating Pressure | 1.0 Mpa |

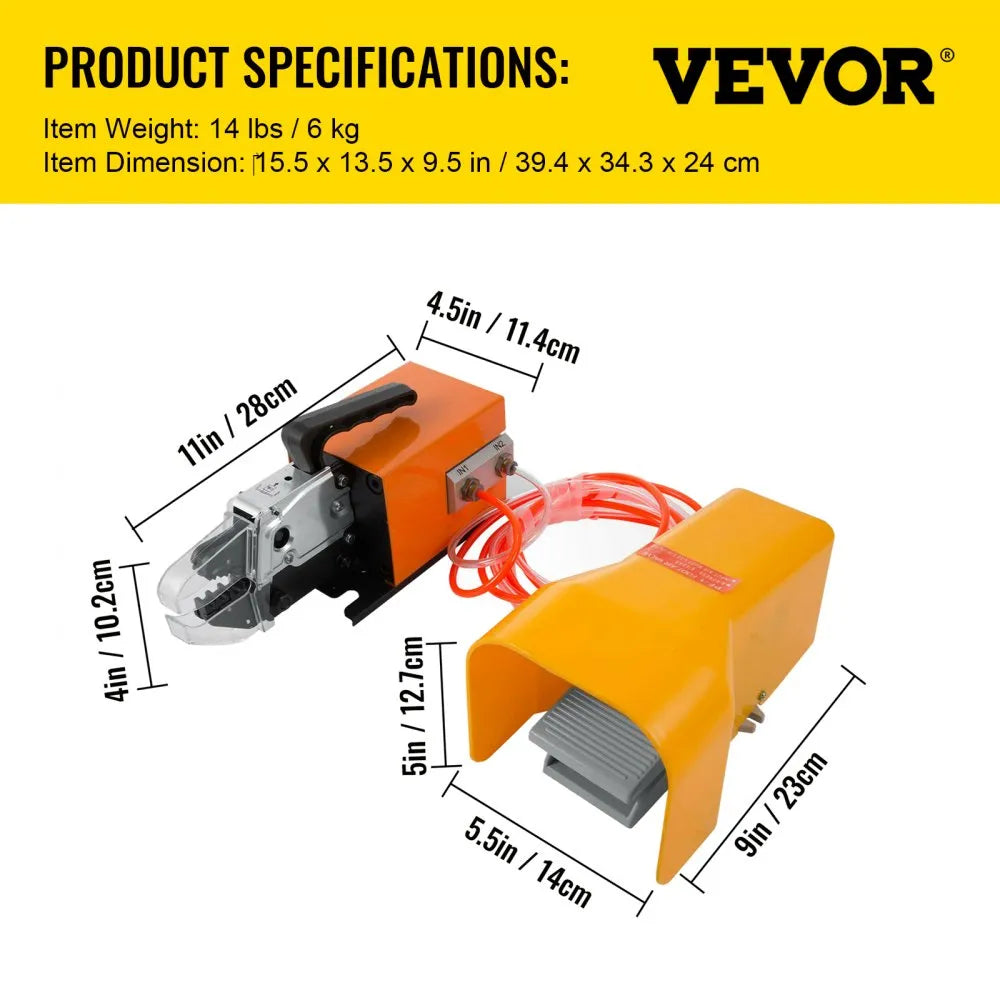

| External Dimension | 266 x 142 x 117 mm (9 x 5.6 x 4.6 inch) |
| Non-insulated terminal capacity | ≤ 16 mm² |
| Pre-insulated terminal capacity | ≤ 6 mm² |
| Tube terminal capacity | ≤ 35 mm² |
