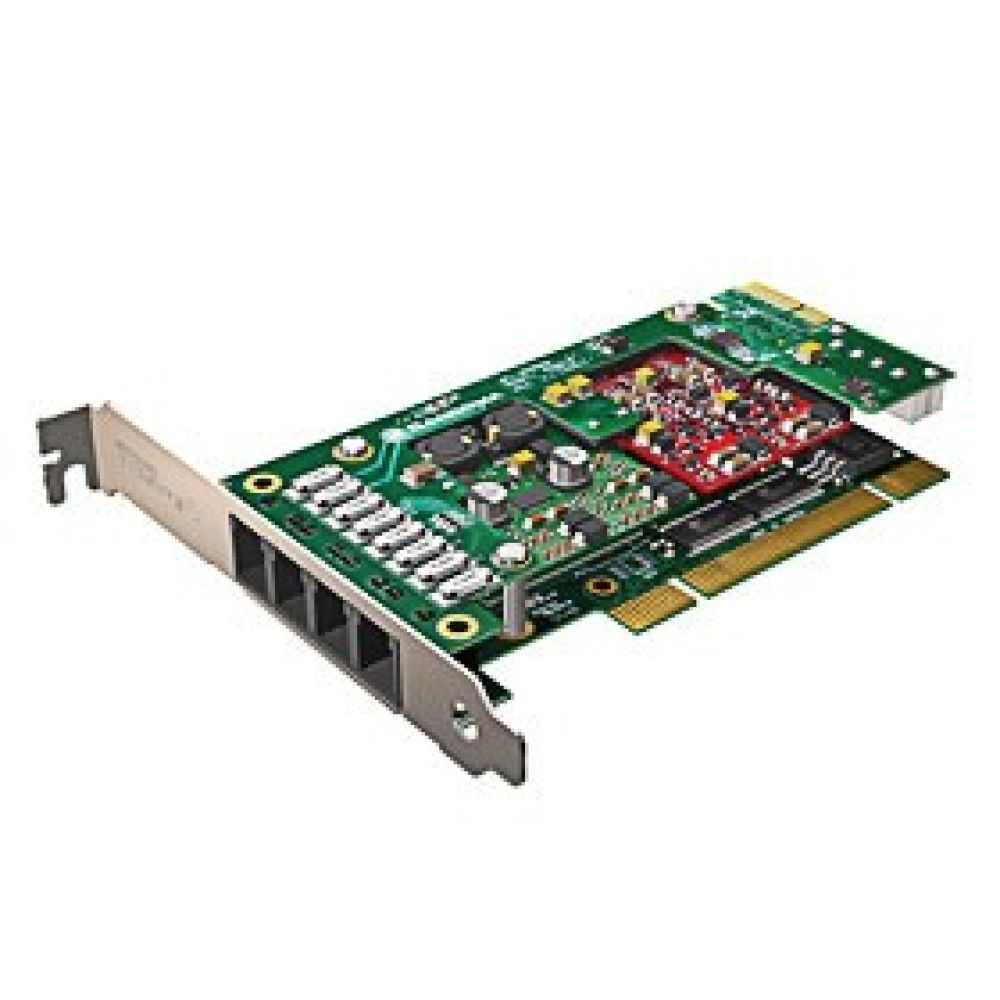

A200-A20101DE - High Performance PCI Express Card with Echo Cancellation

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the A200 AFT architecture, compatible with Sangoma's A101, A102, A104, and A108 cards, offering a versatile solution with common 33 V or 5 V functionality This high-performance card supports both universal PCI and PCI Express interfaces Like its counterparts in the Sangoma AFT Series, the A200 and Remora system feature firmware that can be upgraded in the field, enabling users to benefit from the latest enhancements as they are released.

Features and Benefits:

•From 2 to 24 ports supported, mixing FXO and FXS interfaces, as required..

•Single synchronous PCI interface for all 24 FXO/FXS ports..

•Four RJ11 ports per Remora card..

•Dimensions: 2U Form factor: 120mm x 55 mm for use in restricted chassis..

•32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention..

•Optional DSP Echo Canceller Daughterboard on the A200D..

•G.168-2002 echo cancellation in hardware..

•1024 taps/128ms tail per channel on all channel densities..

Specifications:
