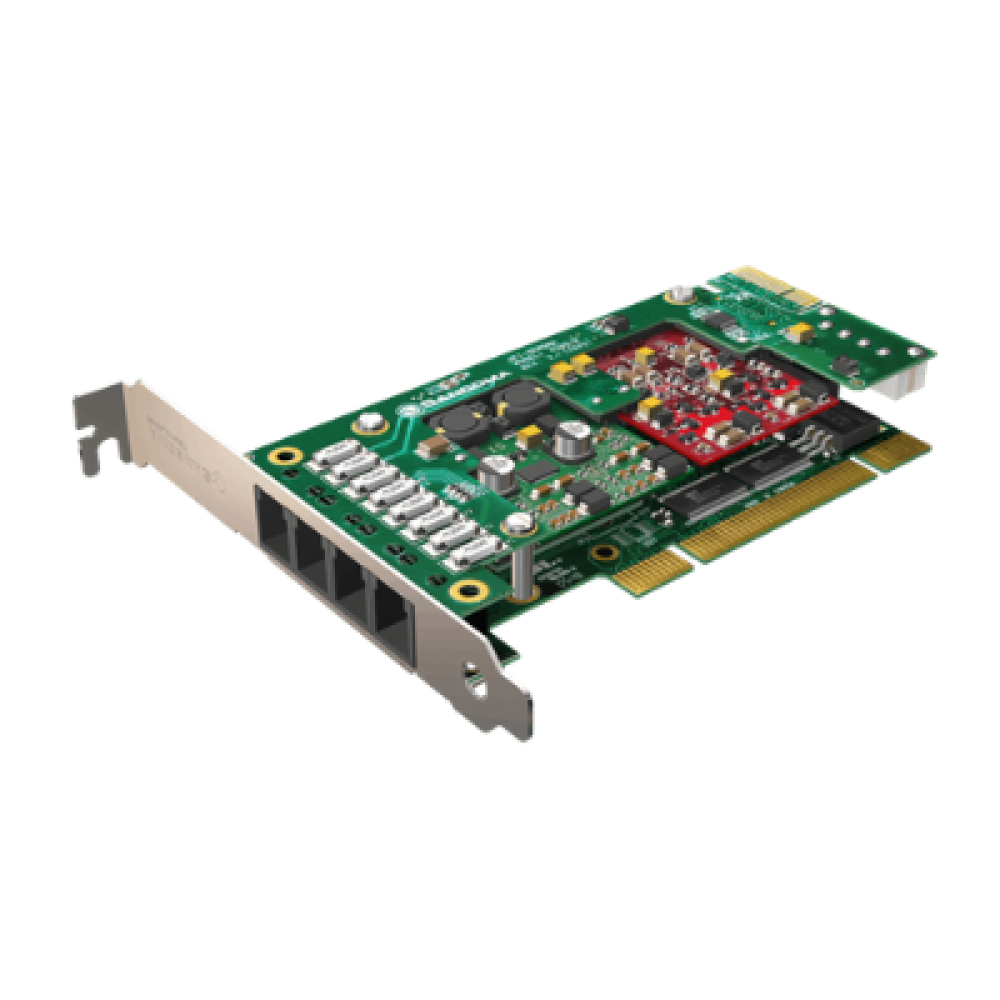

A200-A20004DE - Sangoma A200 Analog Telephony Card for 2-24 Ports

Description:

Meet the Sangoma A200 analog telephony card, expertly crafted for use with Asterisk, FreePBX, and PBXact systems Known for its exceptional scalability, this card accommodates anywhere from two to twenty-four ports, enabling up to twenty-four PSTN calls through a single PCI Express slot Its innovative interchangeable design allows for a customized setup, with the flexibility to mix FXO and FXS interfaces.

Starting with a base configuration of two to four analog ports, the system can easily expand to twenty-four by adding daughterboards and the Remora backplane system Sangoma's commitment to quality is evident in its built-in hardware echo cancellation and compatibility with a range of commercial servers and Linux operating systems, all backed by a lifetime warranty for peace of mind.

Features and Benefits:

•Supports between 2 to 24 ports with mixing of FXO and FXS interfaces as needed..

•Utilizes a single synchronous PCI interface for all 24 FXO/FXS ports..

•Includes four RJ11 ports per Remora card..

•Compact 2U Form Factor dimensions of 120mm x 55mm for installation in restricted chassis..

•Operates with 32 bit bus master DMA data transfers across PCI interface at 132 Mbytes/sec..

•Optional DSP Echo Canceller Daughterboard is available with the A200D..

•Employs G.168-2002 echo cancellation through hardware to enhance call quality..

•Provides 1024 taps/128ms tail per channel across all channel configurations..

Specifications:
