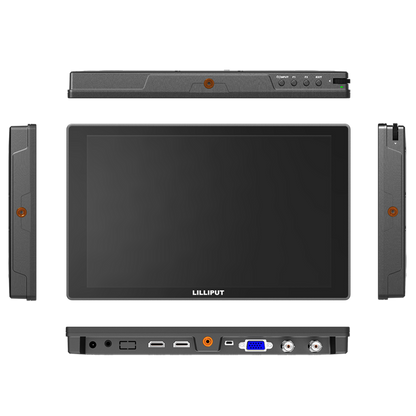

A11 10.1" FHD SDI / HDMI Broadcast Monitor
A11 10.1" FHD SDI / HDMI Broadcast Monitor
SKU: SKU: A11
Couldn't load pickup availability
Description:
A11 101" FHD SDI / HDMI Broadcast Monitor It features a 101” display with a resolution of 1920 x 1200, a brightness of 320cd/m², and an aspect ratio of 16:10 The monitor has a contrast of 1000:1 and a viewing angle of 175°/175°(H/V) It supports various video inputs including 1×3G SDI and 1×HDMI 14, as well as VGA The monitor also includes video loop output, with supported in/out formats for SDI and HDMI ranging from 720p to 2160p.
Additionally, the audio in/out supports 12ch 48kHz for SDI and 2ch 24-bit for HDMI, alongside a 35mm ear jack for audio The built-in speaker enhances the audio experience The operating power is ≤13W with a DC input range of 7-24V and it is compatible with NP-F Series batteries Operating temperatures range from 0℃ to 50℃ and storage temperatures are between -20℃ to 60℃.
Features and Benefits:
•10.1” display with FHD resolution.
•High brightness of 320cd/m².
•Multiple video input options including SDI and HDMI.
•Built-in speakers for audio output.
•Wide viewing angle of 175°.
•Compatible with various battery types.
Specifications:
| Size | 10.1” |
| Resolution | 1920 x 1200 |
| Brightness | 320cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 1000:1 |
| Viewing Angle | 175°/175°(H/V) |

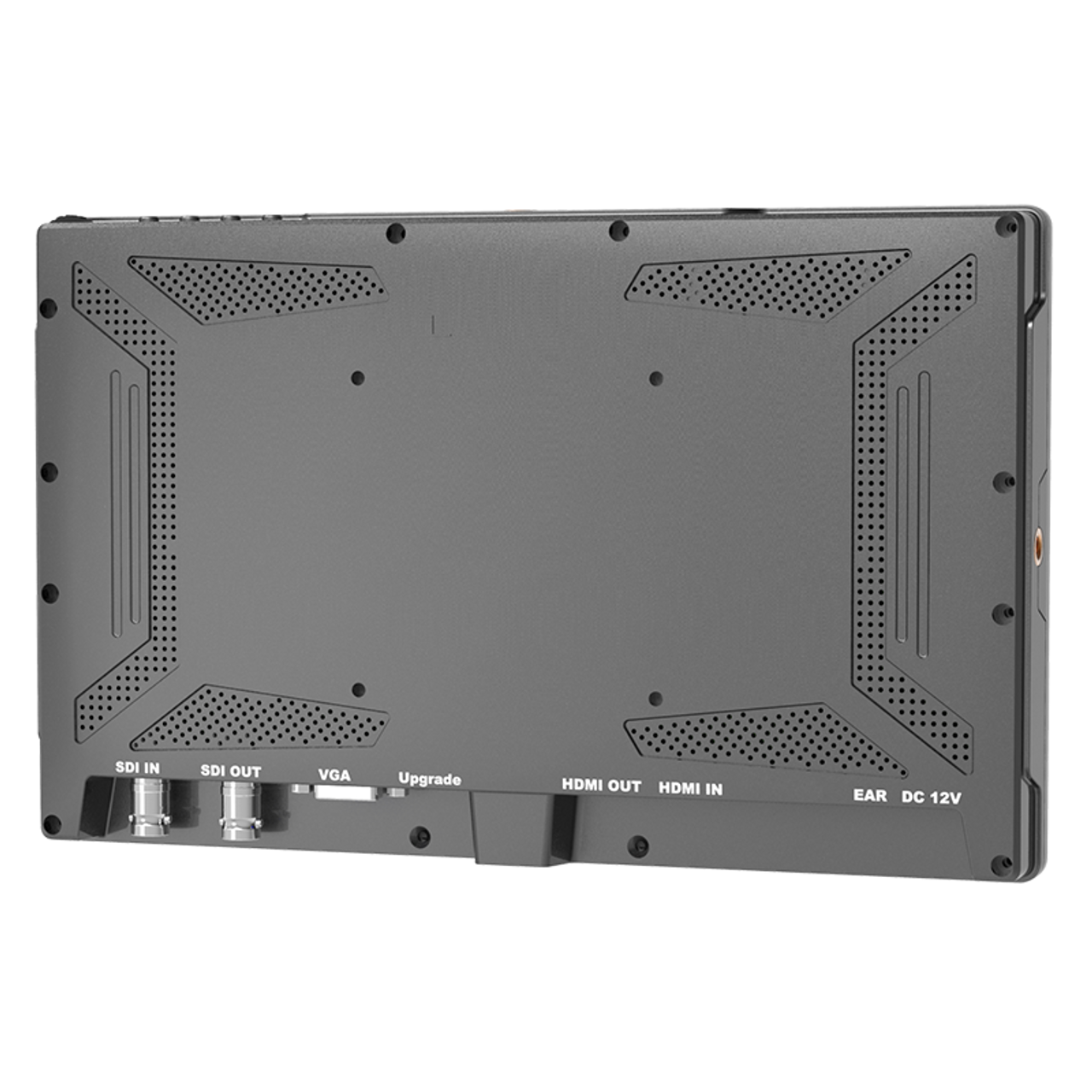

| Video Input | 1×3G SDI, 1×HDMI 1.4, VGA 1 |
| Video Loop Output | 1×3G SDI, 1×HDMI 1.4 |
| Supported In / Out Formats | SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60; HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
| Audio In/Out | SDI 12ch 48kHz 24-bit; HDMI 2ch 24-bit; Ear Jack 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Operating power | ≤13W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Dimension(LWD) | 252×157×25mm |
