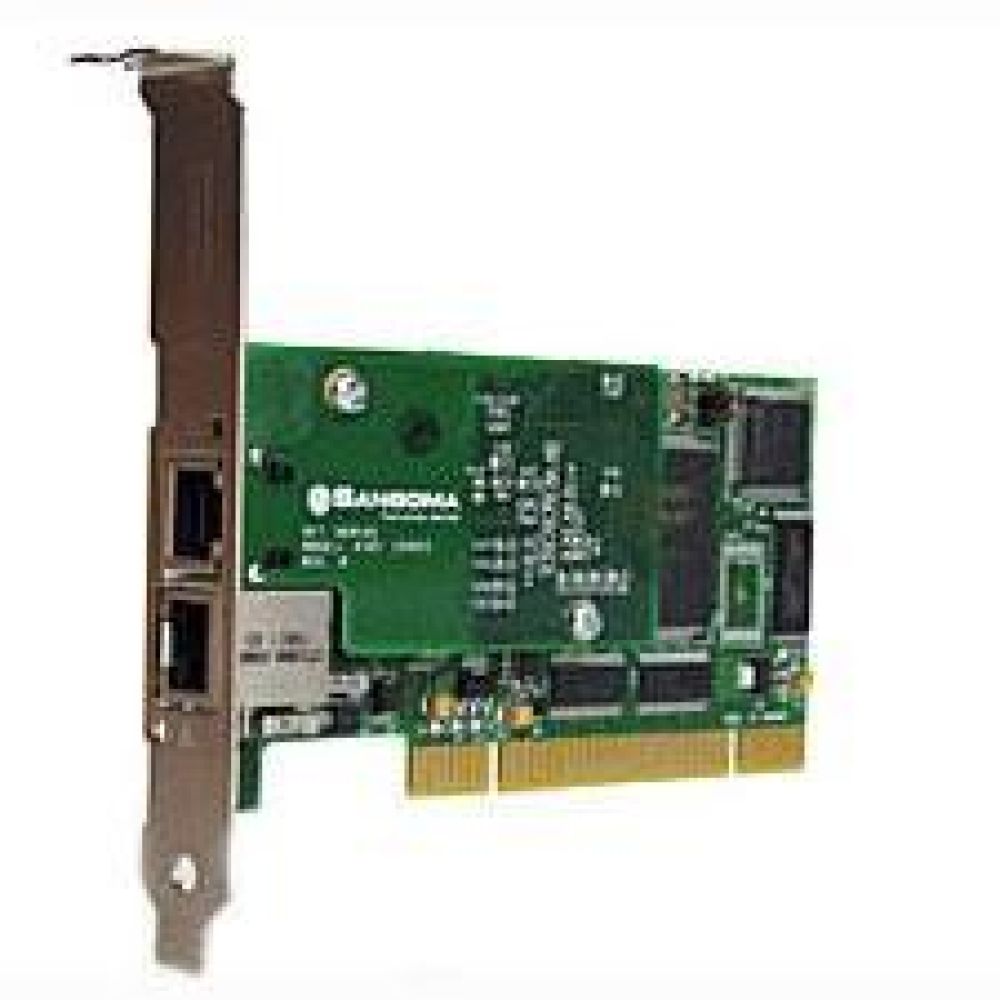

A102-DKIT - Dual Port T1/E1 PCI Card with Echo Cancellation

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Sangoma A102D PCI card, a robust solution for optimized voice and data transmission across T1, E1, and JI lines This advanced card is engineered with Telco-grade hardware echo cancellation, making it perfect for critical communication systems globally It leverages a high-performance PCI or PCI Express interface, allowing for up to 60 simultaneous voice calls or a remarkable 4096 Mbps full-duplex data throughput over two T1, E1, or J1 lines.

With the Sangoma A102D, you benefit from continuous updates due to its field-upgradable design and crash-proof firmware This ensures that you can take advantage of the latest software and hardware advancements seamlessly Integrated with Octasic's DSP technology and certified algorithms, it delivers exceptional carrier-grade echo cancellation and enhanced voice quality for use with open-source and proprietary telephone systems alike.

Elevate your telecommunications experience with the reliability and efficiency of the Sangoma A102D.

Features and Benefits:

•Two T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications..

•Mix T1 channel banks and E1 networks with full channel synchronization..

•TDM clocking mode lets network timing be passed from a network-connected DS0 to any or all of the other ports..

•Support for Asterisk, Yate, CallWeaver, and FreeSWITCH PBX/IVR Projects..

•Fully compatible with all commercially available motherboards..

•Intelligent hardware with downloadable FPGA programming..

•Autosense compatibility with 5V and 3.3V PCI busses..

•Line decoding: HDB3, AMI, B8ZS..

•Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1..

•Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI..

•Supports open source and proprietary PBX, Switch, IVR, or VoIP gateway applications..

Specifications:
