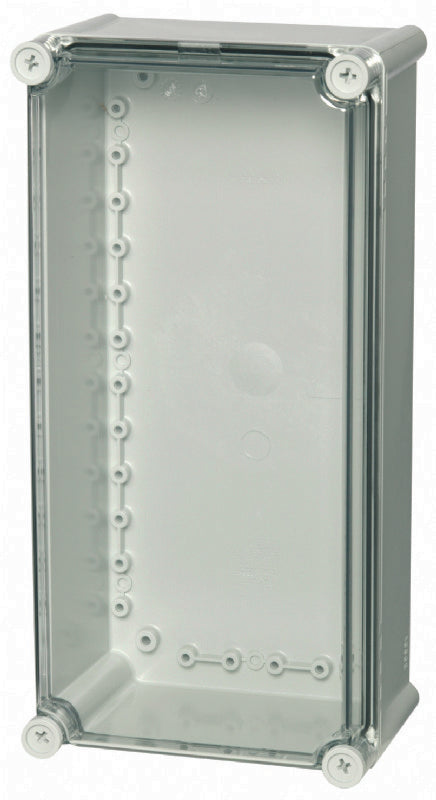

9880391 Enclosure, PC, Transparent hinged cover

9880391 Enclosure, PC, Transparent hinged cover

SKU: UL PC 5628 13 T-3FSH   Download PDF

Qty:
Now $31,185.00   Web pricing policy
BEFORE   Now $31,185.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Enclosure, PC, Transparent hinged cover with dimensions of 22 x 109 x 51 inches The enclosure is made of polycarbonate with a base color of RAL 7035 - light grey and a transparent cover It is designed to provide robust protection and insulation for various applications.

Features and Benefits:

    •UL Type Type 1, 3, 3S, 4, 4X, 6, 6P or 12.

    •Ingress Protection (IP66; IP67).

    •Impact Resistance (IK08).

    •Totally insulated.

    •Halogen free material.

    •UV resistance as per UL 508.

    •Flammability Rating UL94-5VA for enclosure and UL94-V0 for cover.

    •Glow Wire Test at 960 °C.

Specifications:

 Height (inch) 22
 Width (inch) 10.9
 Depth (inch) 5.1
 Height (mm) 558
 Width (mm) 278
 Depth (mm) 130
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature (°F continuous) -40 … 175
 Temperature (°C continuous) -40 … 80
 UL/cUL Type Type 1, 3, 3S, 4, 4X, 6, 6P or 12
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
