Home / 9880333 Enclosure, PC, IP 65, Opaque Hinged Cover
1 1

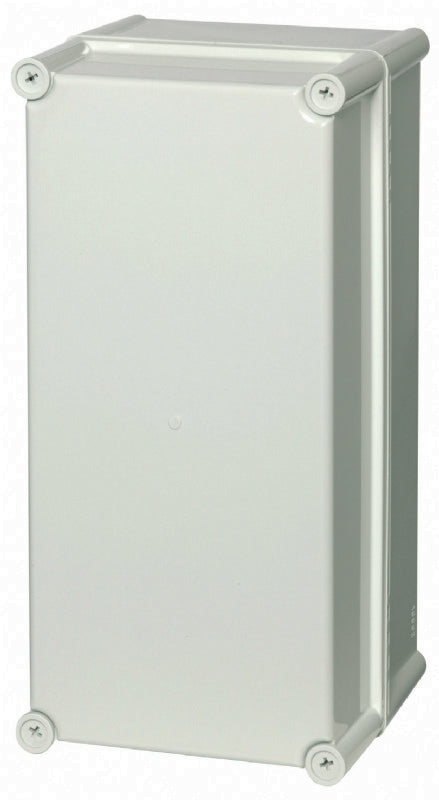

9880333 Enclosure, PC, IP 65, Opaque Hinged Cover

9880333 Enclosure, PC, IP 65, Opaque Hinged Cover

SKU: UL PC 3828 13 G-2FSH Download PDF

Now $22,432.00
BEFORE   Now $22,432.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The enclosure is made from polycarbonate and features an opaque hinged cover It is rated for IP 65 protection and has dimensions of 149 x 109 x 51 inches The product is designed for various UL/cUL types including Type 1, 3, 3S, 4, 4X, 6, 6P and 12, and provides high ingress protection (IP66; IP67) alongside impact resistance (IK08) The operating temperature can range from -40 to 175 degrees Fahrenheit, making it a versatile option for various environments.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •IP66 and IP67 ratings for excellent ingress protection.

    •IK08 impact resistance rating for enhanced durability.

    •Wide temperature range of -40 to 175 °F suitable for extreme conditions.

    •UL/cUL Type rating accommodates multiple applications.

Specifications:

 Height (inch) 14.9
 Width (inch) 10.9
 Depth (inch) 5.1
 Height (mm) 378
 Width (mm) 278
 Depth (mm) 130
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 … 175
 Temperature (continuous) °C -40 … 80
 UL/cUL Type Type 1, 3, 3S, 4, 4X, 6, 6P and 12
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
