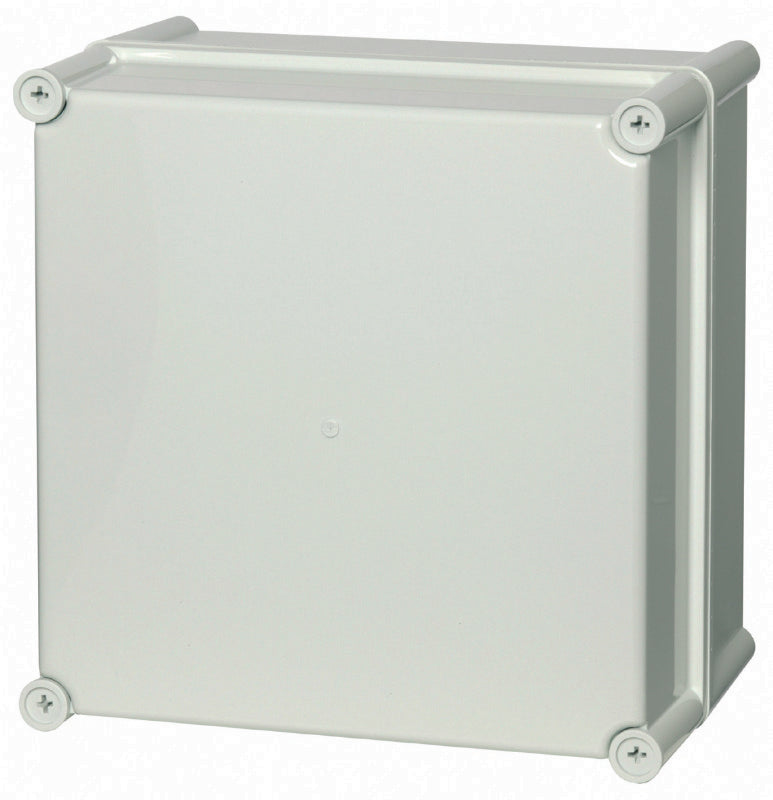

9880317 Enclosure, PC, IP 65, Opaque Hinged Cover

9880317 Enclosure, PC, IP 65, Opaque Hinged Cover

SKU: UL PC 2828 13 G-2FSH   Download PDF

Qty:
Now $19,299.00   Web pricing policy
BEFORE   Now $19,299.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

Enclosure, PC, IP 65, Opaque Hinged Cover dimensions are 109 x 109 x 51 inches with UL Type ratings of Type 1, 3, 3S, 4, 4X, 6, 6P and 12 It has an Ingress Protection rating of IP66 and IP67, and an Impact Resistance of IK08.

Features and Benefits:

    •Constructed from Polycarbonate material.

    •Base color is RAL 7035 - light grey.

    •Cover color is RAL 7035 - light grey.

    •Equipped with a polyurethane gasket.

    •Operational temperature range from -40°F to 175°F.

    •Electrical insulation is totally insulated.

    •UV resistance per UL 508 standards.

    •Halogen free as per DIN/VDE 0472, Part 815 is not applicable.

    •Flammability rating of UL94-5VA (f1) and cover UL94-V0 (f1).

    •Glow wire test at 960 °C.

Specifications:

 Dimensions (inches) 10.9 x 10.9 x 5.1
 Dimensions (mm) 278 x 278 x 130
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 to 175
 Temperature (continuous) °C -40 to 80
 UL/cUL Type Type 1, 3, 3S, 4, 4X, 6, 6P and 12
 Ingress Protection IP66; IP67
 Impact Resistance IK08
 Totally insulated true
 Halogen free false
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
